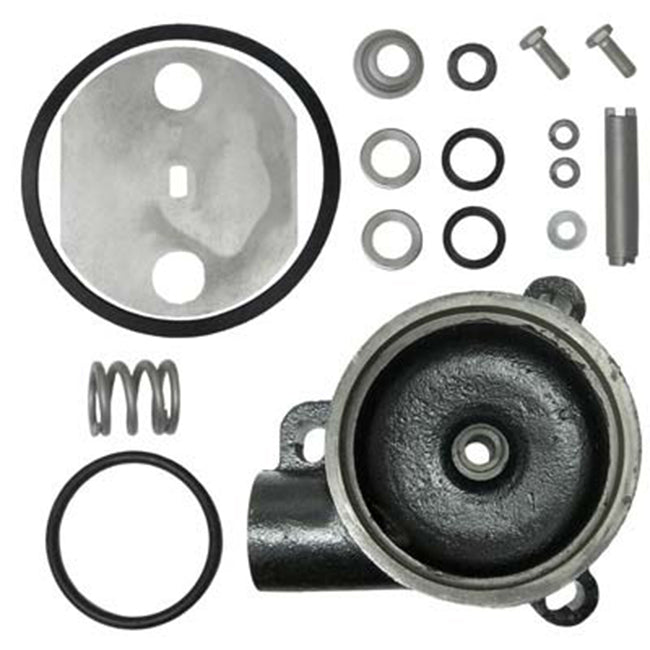

PK Lindsay 7-03CE Large Mixing Valve Rebuild Kit – Models 300LA & 600LA

Keep your older PK Lindsay abrasive blasting equipment in service with the 7-03CE Large Mixing Valve Rebuild Kit. This kit is designed for the large mixing valve assembly used on PK Lindsay Models 300LA and 600LA.

The 7-03CE includes Diagram Item #13 along with the 7-36A Large Mixing Valve Kit, providing the components needed to service and rebuild the existing large mixing valve assembly.

Part Information:

• Part Number: 7-03CE
• Product: Large Mixing Valve Rebuild Kit
• Application: PK Lindsay Large Mixing Valve
• Fits: Models 300LA & 600LA
• Equipment Type: Abrasive Blasting Equipment

Kit Includes:

• Exploded Diagram Item #13
• PK Lindsay 7-36A Large Mixing Valve Kit

Refer to the exploded parts diagram below to identify the components included with this kit.

Fits PK Lindsay Models:

• Model 300LA
• Model 600LA

Applications:

• PK Lindsay abrasive blast pots
• Pressure sandblasting equipment
• Large mixing valve assemblies
• Commercial abrasive blasting systems
• Industrial surface preparation equipment

Features:

• PK Lindsay 7-03CE large mixing valve rebuild kit
• Fits Models 300LA & 600LA
• Includes Diagram Item #13
• Includes 7-36A Large Mixing Valve Kit
• Designed for servicing and rebuilding the existing large mixing valve
• Helps restore proper abrasive metering and adjustment
• Cost-effective alternative to replacing the complete mixing valve
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The large mixing valve controls the amount of abrasive media introduced into the compressed air stream at the bottom of the blast pot.

Because abrasive continuously passes through the valve during operation, the internal components are subjected to considerable wear. Over time, this can result in inconsistent abrasive delivery, poor adjustment, leakage, or difficulty controlling the air-to-abrasive mixture.

The PK Lindsay 7-03CE Large Mixing Valve Rebuild Kit provides the components needed to service the existing valve and restore dependable operation.

Common Signs Your Mixing Valve May Need Rebuilding:

• Abrasive flow is difficult to adjust
• Excessive or insufficient abrasive delivery
• Inconsistent abrasive flow
• Air or abrasive leakage from the valve
• Adjustment mechanism is worn or difficult to operate
• Internal components show visible wear

Rebuild Your Existing Mixing Valve

If the main valve body and other major components are still in good condition, rebuilding the existing large mixing valve can be considerably more economical than replacing the complete assembly.

The 7-03CE kit, including the 7-36A Large Mixing Valve Kit, allows the primary wear components to be serviced while retaining the major serviceable components of your existing valve.

Keeping Older PK Lindsay Equipment Working

PK Lindsay blast machines may no longer be manufactured, but many 300LA and 600LA machines remain in service. Finding the correct repair components for these older machines can be difficult, particularly when you're working from an old exploded parts diagram.

That's why we include the original PK Lindsay part numbers and exploded diagram item numbers whenever possible—so you know exactly what you're buying before ordering.

Important:

This listing is for the PK Lindsay 7-03CE Large Mixing Valve Rebuild Kit for Models 300LA & 600LA and includes Diagram Item #13 and the 7-36A Large Mixing Valve Kit.

Other components shown in the exploded parts diagram are not included unless specifically listed.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
