PK Lindsay 7-36A Large Mixing Valve Rebuild Kit – Models 300LA & 600LA

Keep your older PK Lindsay abrasive blasting equipment in service with the 7-36A Large Mixing Valve Rebuild Kit. This kit contains the primary internal wear and service components needed to rebuild the large mixing valve used on PK Lindsay Models 300LA and 600LA.

The individual components are identified by their exploded diagram item numbers, making it easy to verify exactly what is included before ordering.

Part Information:

• Part Number: 7-36A
• Product: Large Mixing Valve Rebuild Kit
• Application: PK Lindsay Large Mixing Valve
• Fits: Models 300LA & 600LA
• Equipment Type: Abrasive Blasting Equipment

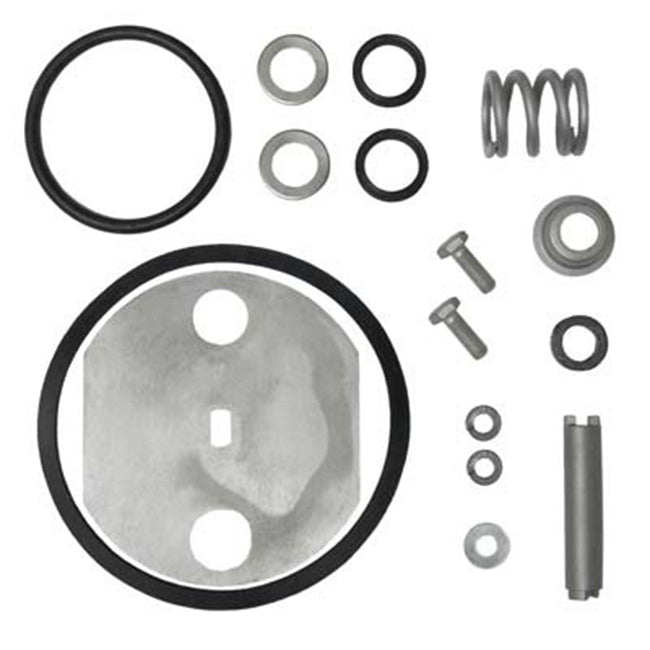

Kit Includes:

Exploded Diagram Items:

• (2) Item #3
• (2) Item #4
• (2) Item #5
• (2) Item #6
• (1) Item #7
• (1) Item #8
• (1) Item #9
• (1) Item #10
• (1) Item #11
• (1) Item #12
• (1) Item #16

Also Includes:

• (1) PK Lindsay 6-50R Filler O-Ring

Refer to the exploded parts diagram below to identify the individual components included with this kit.

Fits PK Lindsay Models:

• Model 300LA
• Model 600LA

Applications:

• PK Lindsay abrasive blast pots
• Pressure sandblasting equipment
• Large mixing valve assemblies
• Commercial abrasive blasting systems
• Industrial surface preparation equipment

Features:

• PK Lindsay 7-36A large mixing valve rebuild kit
• Fits Models 300LA & 600LA
• Includes primary internal wear and service components
• Components identified by exploded diagram item number
• Includes PK Lindsay 6-50R filler O-ring
• Helps restore proper abrasive metering and adjustment
• Allows the existing large mixing valve to be rebuilt rather than replaced
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The large mixing valve regulates the amount of abrasive media introduced into the compressed air stream at the bottom of the blast pot.

Abrasive continuously passes through the valve during operation, subjecting the internal components to considerable wear. As these parts wear, the valve can become increasingly difficult to adjust and may provide inconsistent abrasive delivery.

The PK Lindsay 7-36A Large Mixing Valve Rebuild Kit provides the primary wear components needed to service the existing valve and restore dependable abrasive control.

Common Signs Your Mixing Valve May Need Rebuilding:

• Abrasive flow is difficult to adjust
• Excessive or insufficient abrasive delivery
• Inconsistent abrasive flow
• Air or abrasive leakage from the valve
• Adjustment mechanism has excessive play
• Internal components show visible wear or erosion
• Valve no longer maintains the desired abrasive setting

Rebuild Your Existing Mixing Valve

If the valve body, cover, and other major components are still serviceable, rebuilding the existing valve with the 7-36A kit can be considerably more economical than replacing the complete large mixing valve assembly.

Replacing the primary wear components together also avoids repeatedly taking the valve apart as individual parts wear out.

Keeping Older PK Lindsay Equipment Working

PK Lindsay blast machines may no longer be manufactured, but many 300LA and 600LA machines remain in service. Finding repair parts for these older machines can be difficult, especially when you're working from an old exploded parts diagram.

That's why we include the original PK Lindsay part numbers, quantities, and exploded diagram item numbers whenever possible—so you know exactly what you're buying before ordering.

Important:

This listing is for the PK Lindsay 7-36A Large Mixing Valve Rebuild Kit for Models 300LA & 600LA and includes only the components specifically listed above.

Other components shown in the exploded parts diagram are not included unless specifically listed.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
