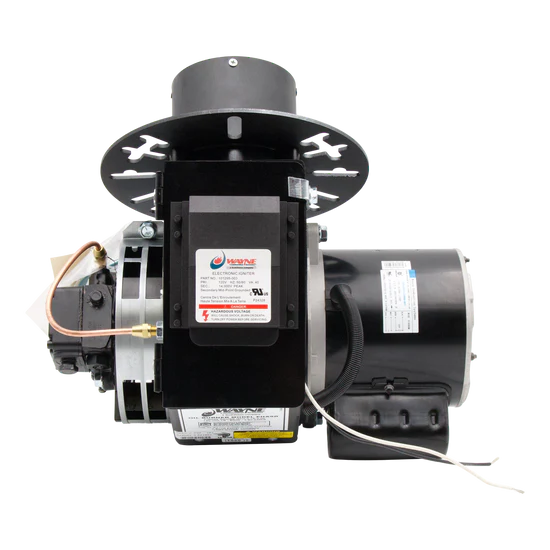

Wayne 239-101 EHASR Burner – 115V, 3 GPH, 3-3/4" Air Tube

Get reliable, high-efficiency burner performance with the Wayne 239-101 EHASR Burner, built for hot water pressure washers and commercial heating applications. Designed for clean combustion and consistent ignition, this burner delivers a stable, high-temperature flame while minimizing soot and emissions.

The Flamelock retention head ensures a controlled flame pattern and strong air/oil mixture, helping your system run cleaner, more efficiently, and with fewer issues over time.

Features:

• Flamelock retention head for stable, uniform flame
• High static pressure for improved air/fuel mixing
• Clean ignition with sharp, no-drip shutdown
• Lower emissions and improved combustion efficiency
• Quiet starts and stops
• Low nozzle operating temperatures
• Pulsation-free operation

Specifications:

• Power: 115V / 60Hz
• Motor: 1/5 HP, 3450 RPM, split phase
• Firing Capacity: 0.75 – 3.00 GPH (No. 1 or No. 2 fuel oil)
• Fuel Pump: 3450 RPM (one or two stage, serviceable)
• Ignition: 10,000V constant duty transformer
• Air Tube Length: 3-3/4"
• Fan Size: 6.25"
• Mounting Options: Rigid flange, adjustable flange, or pedestal

Design Highlights:

• Patented no-drip brass nozzle adapter prevents after-drip, reducing smoke and carbon buildup
• One-piece die-cast aluminum fan housing for precise alignment and low vibration
• Dual air adjustment bands for accurate tuning
• Heavy-duty seamless steel air tube
• Stainless steel flame retention head for long service life

Important:
Fuel nozzle and solenoid are sold separately.

Why it matters:
This burner is built for contractors who need dependable heat, clean operation, and minimal maintenance. Strong ignition, efficient combustion, and reduced soot buildup all translate to less downtime and better performance in the field.

Not sure if this is the right burner for your system? Reach out—we’ll help you get it right the first time.
