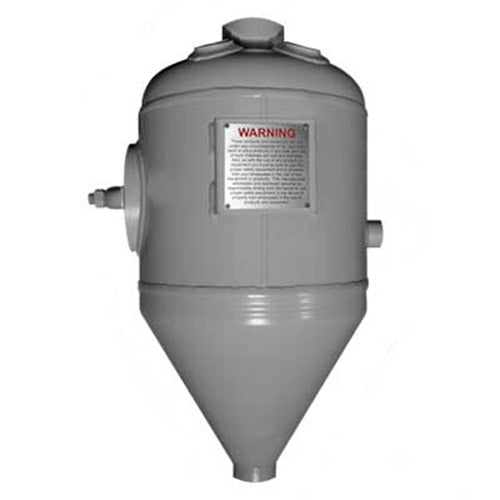

Universal Uniblast F119-032 PDH Pressure Vessel – 1.6 Cu. Ft. – 60° – Complete

Keep your Universal / Uniblast pressure blasting equipment in service with the Universal Equipment Manufacturing / Uniblast Technologies F119-032 PDH Pressure Vessel.

This 1.6 cubic foot PDH pressure vessel features a 60° configuration with SG ports and is supplied complete with the handway assembly, pop-up assembly, and O-ring seat.

Part Information:

• Manufacturer: Universal Equipment Manufacturing Company / Uniblast Technologies
• Part Number: F119-032
• Product: PDH Pressure Vessel
• Capacity: 1.6 Cu. Ft.
• Configuration: 60°
• Ports: SG Ports
• Application: Pressure Abrasive Blasting Equipment
• Equipment Type: Industrial Pressure Blast System

Includes:

• (1) F119-032 PDH 1.6 Cu. Ft. Pressure Vessel
• Handway Assembly
• Pop-Up Assembly
• O-Ring Seat
• Exploded Diagram Item #2

Features:

• Genuine Universal / Uniblast pressure blasting component
• 1.6 cubic foot capacity
• PDH vessel configuration
• 60° design
• Equipped with SG ports
• Includes handway assembly
• Includes pop-up assembly
• Includes O-ring seat
• Complete pressure vessel assembly
• Designed for servicing Universal / Uniblast pressure blasting systems
• Ideal for maintaining or restoring older industrial blast equipment

What the Pressure Vessel Does

The F119-032 pressure vessel stores and pressurizes the abrasive media used by the pressure blasting system.

In a pressure-feed blasting system, the abrasive supply is contained within a pressurized vessel and introduced into the blast stream. This differs from a siphon-feed system, where airflow through the blast gun draws abrasive from an unpressurized supply.

The pressure vessel is therefore a primary pressure-containing component of the blasting system and must be maintained in safe operating condition.

1.6 Cubic Foot PDH Vessel

The F119-032 is identified as a 1.6 cu. ft. PDH pressure vessel with a 60° configuration and SG ports.

When identifying a vessel for an older Universal / Uniblast system, verify the complete configuration rather than relying on overall appearance alone:

• F119-032 part number
• 1.6 cu. ft. capacity
• PDH configuration
• 60° design
• SG port configuration
• Existing equipment and vessel arrangement

These details are particularly important because Universal / Uniblast pressure blast systems were produced with different vessel capacities and configurations.

Handway Assembly Included

The handway assembly is included with the F119-032 pressure vessel.

The handway provides access to the vessel interior for appropriate inspection and service. The handway, sealing surfaces, gasket or seal, and related hardware should be carefully inspected whenever the vessel is opened.

Never attempt to open or loosen a handway while any pressure remains in the vessel.

Pop-Up & O-Ring Seat Included

The pop-up assembly and O-ring seat are also included with this complete vessel.

The pop-up system allows the vessel to seal when the pressure blasting system is activated so the vessel can build and maintain operating pressure.

The pop-up, O-ring, and sealing surfaces should be kept clean and inspected for wear or damage. Problems in this area can result in air leakage or difficulty getting the vessel to seal and pressurize properly.

Common Reasons for Vessel Replacement:

• Existing vessel has reached the end of its approved service life
• Corrosion or deterioration discovered during inspection
• Physical damage to the vessel
• Damaged sealing or mounting areas
• Vessel cannot safely maintain pressure
• Existing vessel is missing or incorrect
• Rebuilding an older Universal / Uniblast pressure blast system
• Restoring equipment to its proper vessel configuration

Complete Vessel Assembly

This assembly includes the:

Pressure Vessel + Handway Assembly + Pop-Up Assembly + O-Ring Seat

Other external valves, piping, controls, abrasive metering components, hoses, and accessories are not included unless specifically stated.

Pressure Vessel Safety Is Critical

Because the F119-032 is a pressure-containing vessel, its condition is substantially more important than that of an ordinary cabinet service component.

Never attempt to extend the service life of a questionable pressure vessel through unauthorized welding, patching, drilling, or modification. Any pressure vessel showing significant corrosion, physical damage, unauthorized modification, or other conditions that could affect its structural integrity should be removed from service and evaluated appropriately.

Finding Parts for Older Universal / Uniblast Equipment

Universal Equipment Manufacturing and Uniblast Technologies pressure blasting systems can remain productive for many years, but identifying the correct vessel and associated components can become difficult when working from older equipment or parts diagrams.

That's why we include the original manufacturer part number, vessel capacity, configuration, port information, included components, and exploded diagram item number whenever possible.

For this assembly, the key identification information is:

Universal / Uniblast F119-032 – Complete PDH Pressure Vessel – 1.6 Cu. Ft. – 60° with SG Ports – Diagram Item #2

Important:

This listing is for one complete Universal Equipment Manufacturing / Uniblast Technologies F119-032 PDH 1.6 Cu. Ft. 60° Pressure Vessel with SG ports, including the handway assembly, pop-up assembly, and O-ring seat, identified as Item #2 in the exploded parts diagram.

External valves, piping, controls, abrasive metering components, hoses, and other components shown in the equipment diagram are sold separately unless specifically stated otherwise.

Always verify the F119-032 part number, 1.6 cu. ft. capacity, PDH configuration, 60° configuration, and SG port arrangement before ordering.

PRESSURE VESSEL SAFETY: Completely depressurize and isolate the blasting system before installation, inspection, or service. Never loosen the handway, pop-up components, fittings, or any vessel connection while the vessel is pressurized. Pressure vessels should be installed, inspected, and operated in accordance with the manufacturer's requirements and all applicable safety codes and regulations. Never operate a pressure vessel that is damaged, excessively corroded, improperly modified, or otherwise considered unsafe.

Need another part for your Universal or Uniblast pressure blasting equipment? Contact us with the original part number, diagram item number, equipment model, or vessel information—we'll help you identify the correct part to keep your machine working.
