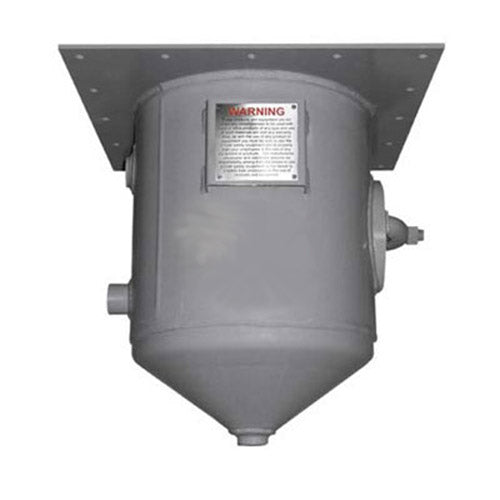

Universal Uniblast F119-003 C663 Pressure Vessel – 0.9 Cu. Ft. / 25 Liter – 20" x 20" Flange

Keep your Universal / Uniblast pressure blasting equipment in service with the Universal Equipment Manufacturing / Uniblast Technologies F119-003 Standard Pressure Vessel.

This 0.9 cubic foot (25 liter) pressure vessel features a 20" x 20" flange configuration and is supplied with the handway assembly, pop-up assembly, and O-ring seat.

Part Information:

• Manufacturer: Universal Equipment Manufacturing Company / Uniblast Technologies
• Part Number: F119-003
• Cross-Reference: C663
• Product: Standard Pressure Vessel
• Capacity: 0.9 Cu. Ft. / 25 Liters
• Flange Size: 20" x 20"
• Application: Pressure Abrasive Blasting Equipment
• Equipment Type: Industrial Pressure Blast System

OEM Cross-Reference Part Numbers:

• Universal / Uniblast: F119-003
• Universal / Uniblast: C663

Includes:

• (1) F119-003 Standard Pressure Vessel
• Handway Assembly
• Pop-Up Assembly
• O-Ring Seat
• Exploded Diagram Item #1

Features:

• Genuine Universal / Uniblast pressure blasting component
• 0.9 cubic foot abrasive capacity
• 25-liter nominal capacity
• 20" x 20" flange configuration
• Includes handway assembly
• Includes pop-up assembly
• Includes O-ring seat
• Complete vessel assembly for servicing Universal / Uniblast pressure blasting equipment
• Ideal for repairing or restoring older industrial blasting systems
• Cross-references Universal / Uniblast C663

What the Pressure Vessel Does

The F119-003 pressure vessel holds the abrasive media used by the pressure blasting system.

Unlike a siphon-feed cabinet, a pressure blast system places the abrasive supply vessel under pressure. The pressurized abrasive is then delivered into the blast stream, providing the aggressive blasting performance associated with pressure-fed equipment.

Because the vessel is a primary pressure-containing component of the system, its condition and correct installation are critical.

0.9 Cu. Ft. / 25 Liter Capacity

The F119-003 is identified as Universal / Uniblast's standard 0.9 cubic foot pressure vessel, equivalent to approximately 25 liters.

When identifying a vessel for an older machine, verify all available information rather than relying on appearance alone:

• F119-003 / C663 part number
• 0.9 cu. ft. / 25 liter capacity
• 20" x 20" flange configuration
• Existing vessel and equipment configuration

Handway Assembly Included

This vessel includes the handway assembly, providing access to the interior of the pressure vessel for appropriate inspection and service.

Handway sealing surfaces and related components should be inspected carefully whenever the vessel is opened and before the system is repressurized.

Pop-Up & O-Ring Seat Included

The pop-up assembly and O-ring seat are included with the F119-003 vessel.

The pop-up is part of the vessel's pressurization system. When the vessel is pressurized, the pop-up closes against its sealing surface so the vessel can build and maintain operating pressure.

Wear, contamination, or damage in the pop-up and sealing area can contribute to air leakage or difficulty pressurizing the system.

Common Reasons for Vessel Replacement:

• Existing vessel has reached the end of its approved service life
• Damage or deterioration discovered during inspection
• Corrosion or excessive wear
• Damaged sealing or mounting areas
• Existing vessel cannot safely maintain pressure
• Restoring older Universal / Uniblast pressure blasting equipment
• Replacing a missing or incorrect vessel assembly

Pressure Vessel Safety Is Critical

This component is substantially different from the ordinary cabinet service parts we've been listing. The F119-003 is a pressure-containing vessel, so I would make the safety language especially prominent on this listing.

A pressure vessel should never be welded, drilled, modified, patched, or otherwise repaired in a manner that is not specifically permitted by the vessel manufacturer and applicable regulations.

The vessel and its associated safety devices, piping, valves, seals, and controls should be inspected before installation and operation.

Finding Parts for Older Universal / Uniblast Equipment

Universal Equipment Manufacturing and Uniblast Technologies pressure blasting systems can remain in industrial service for many years, making the original component numbers particularly useful when repairing older equipment.

That's why we include the original manufacturer part number, cross-reference number, vessel capacity, flange configuration, and included components whenever possible.

For this assembly, the key identification information is:

Universal / Uniblast F119-003 / C663 – Standard Pressure Vessel – 0.9 Cu. Ft. (25 Liter) – 20" x 20" Flange – Diagram Item #1

Important:

This listing is for one Universal Equipment Manufacturing / Uniblast Technologies F119-003 / C663 Standard 0.9 Cu. Ft. (25 Liter) Pressure Vessel with 20" x 20" flange, including the handway assembly, pop-up assembly, and O-ring seat, identified as Item #1 in the exploded parts diagram.

Other valves, piping, controls, abrasive metering components, hoses, and related equipment are sold separately unless specifically stated otherwise.

Always verify the F119-003 / C663 part number, vessel capacity, flange configuration, and equipment application before ordering.

PRESSURE VESSEL SAFETY: Completely depressurize and isolate the blasting system before inspection, installation, or service. Never loosen the handway, pop-up components, fittings, or any vessel connection while the vessel is pressurized. Pressure vessels should be installed, inspected, and operated in accordance with the manufacturer's requirements and all applicable safety codes and regulations. Never operate a pressure vessel that is damaged, excessively corroded, improperly modified, or otherwise considered unsafe.

Need another part for your Universal or Uniblast pressure blasting equipment? Contact us with the original part number, diagram item number, equipment model, or vessel information—we'll help you identify the correct part to keep your machine working.
