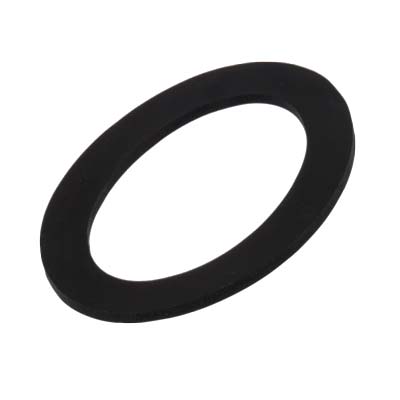

Universal Uniblast C642 F119-018 Handway Gasket – 4" x 6" Pressure Vessel

Maintain a proper seal at the pressure vessel inspection opening with the Universal Equipment Manufacturing / Uniblast Technologies C642 / F119-018 Handway Gasket.

This 4" x 6" handway gasket is used with compatible abrasive blasting pressure vessels and provides the seal between the handway inspection door and vessel opening. It cross-references handway gaskets used by Clemco, Empire, Schmidt/Axxiom, Trinco, Pauli, and A-BEC equipment.

Part Information:

• Manufacturer: Universal Equipment Manufacturing Company / Uniblast Technologies
• Part Number: C642 / F119-018
• Product: Pressure Vessel Handway Inspection Gasket
• Size: 4" x 6"
• Application: Pressure Vessel Handway / Inspection Door
• Equipment Type: Pressure Abrasive Blasting Equipment

OEM Cross-Reference Part Numbers:

Universal Equipment Manufacturing / Uniblast Technologies

• C642
• F119-018

Clemco Industries / Aerolyte Systems / Zero Products

• 02329

Empire Abrasive Equipment Company

• 524292
• 82812

Schmidt Manufacturing / U.S. Filter / Axxiom Manufacturing

• 7000-000-06

Trinco / Trinity Tool

• 9-02052
• 9-2052

P&G / Pauli & Griffin / Pauli Systems

• 050-010-07
• 050-010-27
• 952-001

A-BEC Industries

• 171-0807

Includes:

• (1) 4" x 6" Handway Gasket
• Exploded Diagram Item #4

Features:

• Genuine Universal / Uniblast pressure vessel component
• 4" x 6" handway gasket
• Designed for pressure vessel inspection-door assemblies
• Provides the seal between the handway door and vessel opening
• Individual service component for pressure vessel maintenance
• Extensive OEM cross-reference coverage
• Ideal for maintaining and rebuilding older industrial pressure blast equipment

What the Handway Gasket Does

The C642 / F119-018 gasket seals the 4" x 6" handway inspection opening in the pressure vessel.

The removable handway provides access to the interior of the vessel for inspection and service. When the handway is reinstalled, this gasket creates the seal between the handway closure and vessel opening so the vessel can safely contain operating pressure.

Because the gasket is part of a pressure-containing closure, its condition and correct installation are critical.

Used With the 4" x 6" Handway Assembly

• Universal / Uniblast F119-016
• Universal / Uniblast F119-017
• Universal / Uniblast PDH108
• Universal / Uniblast PDH129

Complete 4" x 6" Handway Assembly – Diagram Items #3 & #4
C642 / F119-018 Handway Gasket – Diagram Item #4

Common Reasons for Replacement:

• Gasket is hardened or deteriorated
• Cracking, splitting, or tearing
• Permanent compression or deformation
• Damage during handway removal
• Air leakage around the handway
• Gasket no longer seats evenly
• Pressure vessel is being inspected or serviced
• Existing gasket is missing
• Rebuilding an older abrasive blast pressure vessel

Inspect the Gasket Whenever the Handway Is Opened

Whenever the handway is removed, inspect the gasket and both mating surfaces carefully before reassembly.

Look for:

• Cuts or tears
• Flattened or distorted areas
• Hardening or deterioration
• Abrasive embedded in the sealing surface
• Corrosion or pitting around the vessel opening
• Damage to the handway closure
• Anything that could prevent the gasket from seating evenly

A new gasket cannot compensate for a severely damaged, corroded, or distorted mating surface.

Broad OEM Cross-Reference

This gasket has an especially useful group of cross-reference numbers:

• Universal / Uniblast C642 / F119-018
• Clemco 02329
• Empire 524292 / 82812
• Schmidt / Axxiom 7000-000-06
• Trinco 9-02052 / 9-2052
• Pauli / P&G 050-010-07 / 050-010-27 / 952-001
• A-BEC 171-0807

Finding Parts for Older Pressure Blasting Equipment

Pressure blasting equipment from Universal, Uniblast, Clemco, Empire, Schmidt/Axxiom, Trinco, Pauli, and other manufacturers can remain in industrial service for decades.

That's why we include the original manufacturer numbers, cross-reference numbers, gasket dimensions, application, and exploded diagram item number whenever possible.

For this component, the key identification information is:

Universal / Uniblast C642 / F119-018 – 4" x 6" Pressure Vessel Handway Inspection Gasket – Diagram Item #4

Important:

This listing is for one Universal Equipment Manufacturing / Uniblast Technologies C642 / F119-018 4" x 6" Handway Inspection Gasket, identified as Item #4 in the exploded parts diagram.

The handway door/crab assembly, pressure vessel, pop-up components, valves, piping, and other components are sold separately unless specifically stated otherwise.

Always verify the 4" x 6" size, original part number, and handway configuration before ordering.

Pressure Vessel Safety

Completely depressurize, isolate, and verify zero pressure in the vessel before loosening or removing the handway. Never loosen, open, adjust, or service a handway closure while the vessel is pressurized.

Before repressurizing, inspect the gasket, handway closure, vessel opening, and mating surfaces for damage, corrosion, proper seating, and secure assembly. Never operate a pressure vessel with a leaking, damaged, improperly installed, or questionable handway closure or gasket.

Need another part for your Universal, Uniblast, Clemco, Empire, Schmidt/Axxiom, Trinco, or Pauli pressure blasting equipment? Contact us with the original part number, diagram item number, pressure vessel model, or equipment information—we'll help you identify the correct part to keep your machine working.
