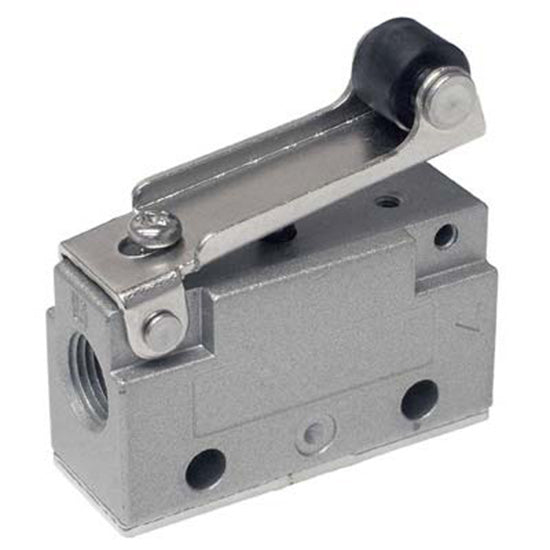

Universal Uniblast F122-044 Blast Cabinet Door Interlock Switch – Post-July 1991 – C660

Maintain the safety interlock system on your Universal / Uniblast blast cabinet with the F122-044 Door Interlock Switch.

This switch is specifically identified for Universal Equipment Manufacturing / Uniblast Technologies equipment manufactured after July 1991. The door interlock is an important safety component designed to work with the cabinet's control system when the access door is opened or closed.

Part Information:

• Manufacturer: Universal Equipment Manufacturing Company / Uniblast Technologies
• Part Number: F122-044
• Product: Blast Cabinet Door Interlock Switch
• Application: Blast Cabinet Door Safety Interlock System
• Equipment Vintage: Post-July 1991
• Equipment Type: Abrasive Blast Cabinet

OEM Cross-Reference Part Numbers:

Universal Equipment Manufacturing / Uniblast Technologies

• F122-044
• C660

Includes:

• (1) F122-044 Door Interlock Switch
• Exploded Diagram Item #15

Features:

• Genuine Universal / Uniblast blast cabinet component
• Designed for the cabinet door interlock system
• For post-July 1991 equipment
• Helps maintain proper operation of the cabinet safety system
• Individual service component
• Ideal for maintenance and refurbishment of older Universal / Uniblast blast cabinets
• Cross-references Universal / Uniblast C660
• Helps keep older industrial blasting equipment safely in service

What the Door Interlock Switch Does

The F122-044 is part of the blast cabinet door safety interlock system.

The interlock switch detects the position of the cabinet door and interfaces with the machine's control system. Its purpose is to prevent normal blasting operation when the cabinet door is not in the proper operating position.

Because this component is part of a safety system, proper adjustment and operation are just as important as installing the correct switch.

Common Reasons for Replacement:

• Interlock switch no longer operates consistently
• Cabinet will not operate with the door properly closed
• Switch mechanism is physically damaged
• Electrical terminals are damaged or corroded
• Intermittent operation when the door moves
• Existing switch is missing
• Switch has excessive mechanical wear
• Restoring or refurbishing an older blast cabinet

Important – Post-July 1991 Application

The production date matters with this component.

F122-044 / C660 is identified for POST-JULY 1991 equipment.

Universal / Uniblast cabinets manufactured before this date may use a different interlock arrangement or component. Customers should verify the original part number and approximate equipment manufacture date before ordering.

Check Interlock Adjustment After Installation

After replacing the switch, verify that the door properly actuates the interlock throughout its normal range of movement.

Check for:

• Proper switch actuation when the door closes
• Secure switch mounting
• Correct alignment with the door or actuator
• Loose or damaged wiring
• Damaged terminals or connectors
• Pinched or deteriorated wiring
• Reliable shutdown when the door is opened

The machine should not be returned to service until the door interlock system operates correctly and consistently.

Do Not Bypass a Defective Interlock

A malfunctioning door interlock should be repaired rather than bypassed.

If a cabinet operates with the access door open when it should not, inspect the switch, actuator/alignment, wiring, connections, and associated control components to determine the cause.

Finding Parts for Older Universal / Uniblast Equipment

Universal Equipment Manufacturing and Uniblast Technologies blast cabinets can remain in industrial service for many years, but safety and control components may differ according to production date.

That's why we include the original manufacturer part number, cross-reference number, equipment date information, and exploded diagram item number whenever possible.

For this component, the key identification information is:

Universal / Uniblast F122-044 / C660 – Door Interlock Switch – Post-July 1991 – Diagram Item #15

Important:

This listing is for one Universal Equipment Manufacturing / Uniblast Technologies F122-044 / C660 Door Interlock Switch for post-July 1991 equipment, identified as Item #15 in the exploded parts diagram.

Other switches, actuators, wiring, mounting hardware, and components shown in the equipment diagram are sold separately unless specifically stated otherwise.

Always verify the F122-044 / C660 part number and post-July 1991 equipment application before ordering.

Disconnect electrical power and completely relieve compressed-air pressure before servicing the blast cabinet. This switch is part of the cabinet's safety interlock system. Never bypass, defeat, or operate the equipment with a malfunctioning door interlock. After installation, verify that opening the cabinet door produces the proper equipment shutdown before returning the machine to service.

Need another part for your Universal or Uniblast blast cabinet? Contact us with the original part number, diagram item number, equipment model, or approximate year of manufacture—we'll help you identify the correct part to keep your machine working.
