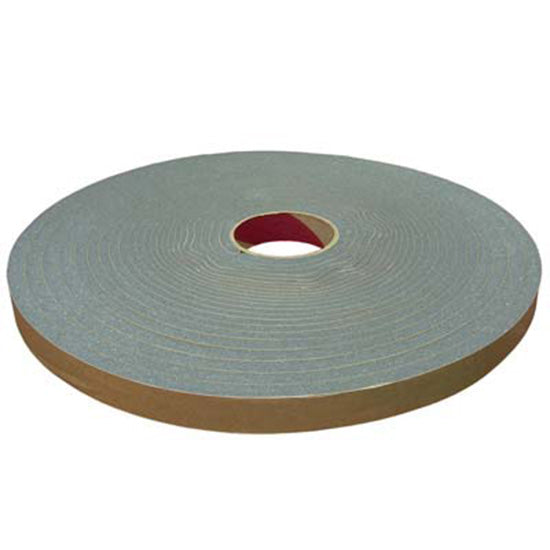

Universal Uniblast F111-011 Blast Cabinet Window Gasket – 1/2" x 3/4" x 25'

Maintain a proper seal around the viewing window of your Universal / Uniblast blast cabinet with the F111-011 Closed-Cell Window Gasket.

This gasket measures 1/2" x 3/4" wide and is supplied in a 25-foot roll for servicing Universal Equipment Manufacturing / Uniblast Technologies blast cabinet window assemblies. The closed-cell material provides a compressible seal around the viewing window, helping contain abrasive media and dust inside the cabinet.

Part Information:

• Manufacturer: Universal Equipment Manufacturing Company / Uniblast Technologies
• Part Number: F111-011
• Product: Blast Cabinet Window Gasket
• Material: Closed-Cell Gasket Material
• Size: 1/2" x 3/4" Wide
• Roll Length: 25 Feet
• Application: Blast Cabinet Viewing Window

OEM Cross-Reference Part Numbers:

• Universal / Uniblast: F111-011
• Universal / Uniblast: F111-009
• Universal / Uniblast: F111-004
• Universal / Uniblast: C615

Includes:

• (1) 25-Foot Roll of 1/2" x 3/4" Closed-Cell Window Gasket
• Exploded Diagram Item #3

Features:

• Genuine Universal / Uniblast blast cabinet component
• 1/2" x 3/4" closed-cell gasket
• Supplied in a 25-foot roll
• Designed for blast cabinet viewing-window assemblies
• Provides a compressible seal around the window
• Helps contain abrasive media and dust
• Helps protect the integrity of the cabinet viewing area
• Ideal for window maintenance and cabinet refurbishment
• Cross-references several older Universal / Uniblast part numbers
• Helps keep older blast cabinets in service

What the Window Gasket Does

The F111-011 gasket seals around the blast cabinet viewing-window assembly, filling the space between mating surfaces when the window components are installed.

The closed-cell material compresses to help create a consistent seal around the viewing area. This is particularly important in an abrasive blast cabinet, where fine dust and media can work their way through deteriorated or poorly sealed window components.

Common Reasons for Replacement:

• Gasket has hardened with age
• Material remains permanently compressed
• Cracking, tearing, or missing sections
• Abrasive or dust leaking around the window
• Existing gasket no longer seals evenly
• Gasket is damaged during glass replacement
• Viewing-window assembly is being rebuilt
• Refurbishing an older Universal / Uniblast cabinet

When Replacing Cabinet Glass

If you're replacing the viewing glass or protective glass, it's a good time to inspect the F111-011 window gasket.

Old closed-cell gasket material can look acceptable until the window is disassembled, only to be found flattened, brittle, or stuck to the glass or frame.

Replacing deteriorated gasket material while the window is already apart helps ensure the new or serviced glass is properly seated and sealed.

25-Foot Roll

The 25-foot roll provides enough material for servicing the window assembly while leaving additional gasket available for future maintenance.

The gasket can be cut to the required lengths during installation. Before removing the existing material, note its routing and positioning around the window assembly to make installation of the new gasket easier.

Cross-Reference Information

Older Universal / Uniblast parts information may identify this window gasket under several different numbers:

• C615
• F111-004
• F111-009
• F111-011

Finding Parts for Older Universal / Uniblast Equipment

Universal Equipment Manufacturing and Uniblast Technologies blast cabinets have been used in industrial applications for many years, and window components can vary depending on the age and configuration of the machine.

That's why we include the original manufacturer part number, cross-reference numbers, dimensions, roll length, and exploded diagram item number whenever possible.

For this product, the key identification information is:

Universal / Uniblast F111-011 – 1/2" x 3/4" Closed-Cell Window Gasket – 25' Roll – Diagram Item #3

Important:

This listing is for one 25-foot roll of Universal Equipment Manufacturing / Uniblast Technologies F111-011 1/2" x 3/4" Closed-Cell Window Gasket, identified as Item #3 in the exploded parts diagram.

Cross-references Universal / Uniblast C615, F111-004 and F111-009.

Glass, interlock gasket, protective underlayment, window frames, and other components shown in the exploded diagram are sold separately unless specifically stated otherwise.

Always verify the part number and 1/2" x 3/4" gasket dimensions before ordering.

Completely shut down abrasive blasting equipment before servicing or disassembling the viewing-window assembly. Replace damaged glass or deteriorated sealing components before returning the cabinet to service.

Need another part for your Universal or Uniblast blast cabinet? Contact us with the original part number, diagram item number, equipment model, or approximate year of manufacture—we'll help you identify the correct part to keep your machine working.
