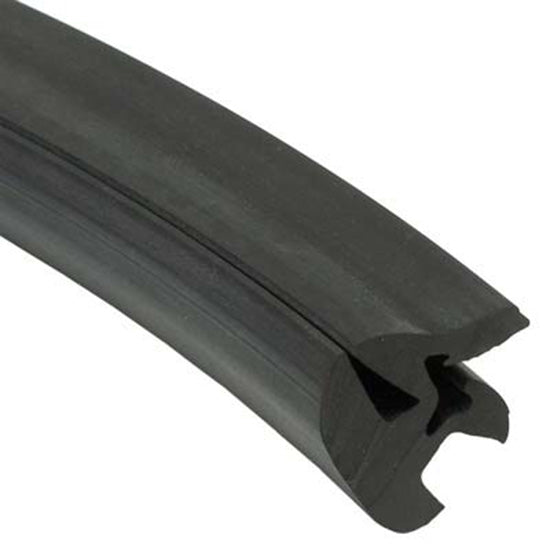

Universal Uniblast F111-007 Glass Interlock Gasket – 67" – For F104-006 Safety Glass

Maintain the viewing-window assembly on your Universal / Uniblast blast cabinet with the F111-007 Glass Interlock Gasket.

This 67-inch interlock gasket is specifically designed for use with Universal Equipment Manufacturing / Uniblast Technologies F104-006 Safety Glass. It provides the mounting and sealing interface that helps secure the viewing glass within the blast cabinet window assembly.

Part Information:

• Manufacturer: Universal Equipment Manufacturing Company / Uniblast Technologies
• Part Number: F111-007
• Product: Glass Interlock Gasket
• Length: 67"
• Application: Blast Cabinet Viewing Window
• Used With: F104-006 Safety Glass
• Equipment Type: Abrasive Blast Cabinet

Includes:

• (1) F111-007 67" Glass Interlock Gasket
• Exploded Diagram Item #2

Features:

• Genuine Universal / Uniblast blast cabinet component
• 67" length
• Interlocking window gasket design
• Specifically used with F104-006 Safety Glass
• Helps secure the viewing glass within the window assembly
• Provides a seal around the glass
• Allows individual servicing of the blast cabinet viewing window
• Ideal for maintenance and restoration of older Universal / Uniblast blast cabinets

Designed for F104-006 Safety Glass

The application is especially important on this gasket:

F111-007 = 67" Interlock Gasket for F104-006 Safety Glass

The F104-006 is the 9" x 24" laminated safety-glass viewing window used on pre-1999 Universal / Uniblast equipment.

Because Universal / Uniblast used different glass and gasket arrangements over the years, customers should verify the F111-007 gasket and F104-006 glass part numbers rather than selecting a gasket based solely on appearance.

What the Glass Interlock Gasket Does

The F111-007 interlock gasket is part of the blast cabinet viewing-window assembly. It provides the interface that helps retain and seal the F104-006 safety glass in the cabinet.

A properly installed gasket helps keep the glass securely positioned while maintaining a seal around the viewing area. This is particularly important on abrasive blasting equipment, where fine dust and abrasive media can work through gaps caused by deteriorated, damaged, or improperly installed window components.

Common Reasons for Replacement:

• Gasket has hardened or become brittle with age
• Cracking, splitting, or tearing
• Gasket has lost flexibility
• Existing gasket no longer securely retains the glass
• Dust or abrasive leaking around the viewing window
• Gasket damaged during glass removal
• F104-006 safety glass is being replaced
• Refurbishing an older Universal / Uniblast cabinet

When Replacing F104-006 Glass

If the F104-006 safety glass is being replaced, inspect the F111-007 gasket carefully before reassembling the window.

Older interlock gasket material can become stiff or distorted after years of service and may also be damaged during removal. Replacing deteriorated gasket material while the window is already disassembled can make for a much better repair than attempting to reuse an old gasket.

Similar Universal / Uniblast Interlock Gaskets

Universal / Uniblast used several different interlock gasket configurations, so the part number and glass application are important:

• F111-006: 40" Interlock Gasket – for F104-005 Safety Glass
• F111-007: 67" Interlock Gasket – for F104-006 Safety Glass
• F111-014: Glass Interlock Gasket – 50' Roll

These should not be assumed interchangeable simply because they're all described as glass interlock gaskets.

Finding Parts for Older Universal / Uniblast Equipment

Universal Equipment Manufacturing and Uniblast Technologies blast cabinets have been in industrial service for many years, and viewing-window components can vary depending on the cabinet and its age.

That's why we include the original manufacturer part number, gasket length, corresponding glass part number, and exploded diagram item number whenever possible.

For this component, the key identification information is:

Universal / Uniblast F111-007 – 67" Glass Interlock Gasket – For F104-006 Safety Glass – Diagram Item #2

Important:

This listing is for one Universal Equipment Manufacturing / Uniblast Technologies F111-007 67" Glass Interlock Gasket for F104-006 Safety Glass, identified as Item #2 in the exploded parts diagram.

F104-006 safety glass and other viewing-window components are sold separately unless specifically stated otherwise.

Always verify the F111-007 gasket part number, 67" length, and F104-006 safety glass application before ordering.

Completely shut down abrasive blasting equipment before servicing or disassembling the viewing-window assembly. Replace damaged glass or deteriorated sealing components before returning the cabinet to service.

Need another part for your Universal or Uniblast blast cabinet? Contact us with the original part number, diagram item number, glass part number, equipment model, or approximate year of manufacture—we'll help you identify the correct part to keep your machine working.
