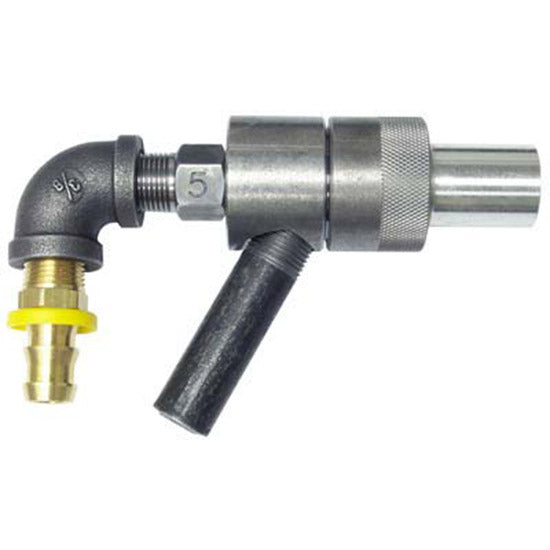

Universal Uniblast F113-003 Blast Gun Assembly – 5/16" Tungsten Carbide Nozzle

Universal Uniblast F113-003 Blast Gun Assembly – 5/16" Tungsten Carbide Nozzle

$ 248.99 USD
$ 248.99 USD
Sale Sold out

Universal Uniblast F113-003 Blast Gun Assembly – 5/16" Tungsten Carbide Nozzle

Complete Universal Equipment Manufacturing / Uniblast Technologies F113-003 abrasive blast gun assembly equipped with a 5/16" tungsten carbide nozzle and 5/32" air jet.

Designed for suction-feed abrasive blasting systems, this complete gun assembly combines compressed air with abrasive media to produce a concentrated blast stream for surface preparation, coating removal, cleaning, and general industrial blasting.

Part Information:

  • Manufacturer: Universal Equipment Manufacturing Company / Uniblast Technologies
  • Part Number: F113-003
  • Product: Complete Abrasive Blast Gun Assembly
  • Nozzle Material: Tungsten Carbide
  • Nozzle Bore: 5/16"
  • Air Jet: 5/32"
  • Application: Suction-Feed Abrasive Blasting Equipment

Includes:

  • Complete Blast Gun Assembly
  • 5/16" Tungsten Carbide Nozzle
  • 5/32" Air Jet

Features:

  • Genuine Universal / Uniblast blast gun assembly
  • 5/16" tungsten carbide blast nozzle
  • 5/32" air jet
  • Designed for suction-feed abrasive blasting systems
  • Concentrated blast stream for controlled surface preparation
  • Tungsten carbide provides excellent resistance to abrasive wear
  • Suitable for professional and industrial blast cabinets
  • Complete assembly simplifies gun replacement and servicing
  • Ideal for cleaning, coating removal, and surface preparation
  • Helps keep older Universal / Uniblast equipment in service

Why Tungsten Carbide?

Tungsten carbide provides excellent wear resistance and durability for demanding abrasive blasting applications.

It is a proven nozzle material for:

  • Industrial blast cabinets
  • Production blasting
  • Surface preparation
  • Equipment restoration
  • Coating and corrosion removal
  • Frequent abrasive blasting applications

Actual nozzle life depends on abrasive type, media size, operating pressure, frequency of use, and other blasting conditions.

How a Suction Blast Gun Works

Compressed air passing through the 5/32" air jet creates a low-pressure area inside the blast gun, drawing abrasive media through the media hose.

The abrasive combines with the compressed-air stream and exits through the 5/16" tungsten carbide nozzle toward the work surface.

Correct matching of the air jet, nozzle, abrasive supply, and compressor capacity is important for consistent abrasive pickup and efficient blasting.

Air Consumption / Compressor Requirements

CFM figures are provided as a general siphon-blast compressor-sizing reference. Actual air consumption can vary with gun configuration, nozzle condition, operating conditions, and the compressed-air system. The compressor must provide sufficient CFM at the desired operating pressure for proper abrasive pickup and blasting performance.

Applications:

  • Suction-feed blast cabinets
  • Industrial abrasive blasting
  • Surface preparation
  • Paint and coating removal
  • Rust and corrosion removal
  • Cleaning fabricated and machined components
  • Equipment restoration
  • Production blasting
  • General industrial maintenance

Checking Nozzle Wear

Tungsten carbide provides excellent wear resistance, but blast nozzles gradually enlarge as abrasive passes through them.

A worn nozzle can cause:

  • Increased compressed-air consumption
  • Changes in blast pattern
  • Reduced abrasive velocity
  • Reduced blasting efficiency
  • Increased abrasive consumption
  • Difficulty maintaining operating pressure

Periodically measuring the nozzle bore can help identify excessive wear before it significantly affects blasting performance.

Finding Parts for Older Universal / Uniblast Equipment

Universal Equipment Manufacturing and Uniblast Technologies blasting equipment has been used in industrial applications for many years, and identifying components for older equipment can sometimes be difficult.

That's why we include the original manufacturer part number and nozzle/air-jet configuration whenever possible.

For this assembly, the key identification information is:

Universal / Uniblast F113-003 – 5/16" Tungsten Carbide Nozzle with 5/32" Air Jet

Important:

This listing is for one Universal Equipment Manufacturing / Uniblast Technologies F113-003 complete blast gun assembly with 5/16" tungsten carbide nozzle and 5/32" air jet.

Always verify the F113-003 part number, nozzle size, and air-jet size required for your equipment before ordering.

Completely shut off and relieve compressed-air pressure before installing, removing, or servicing any blast gun, nozzle, hose, or related blasting component. Never operate abrasive blasting equipment with damaged or improperly secured components.

Need another part for your Universal or Uniblast abrasive blasting equipment? Contact us with the original part number or equipment model—we'll help you identify the correct part to keep your machine working.
