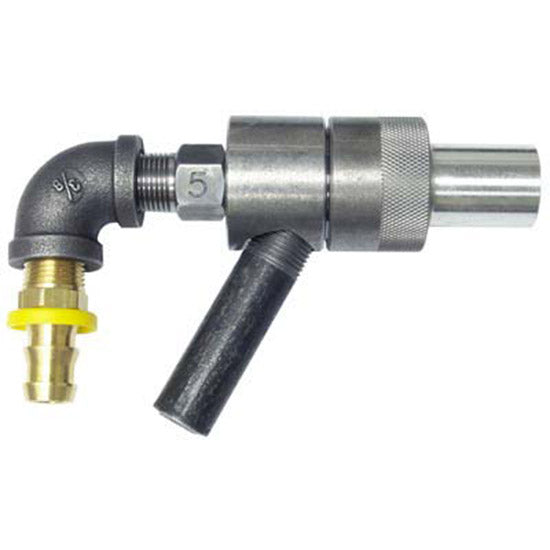

Universal Uniblast F113-002 Gun A Blast Gun Assembly – 5/16" Tungsten Carbide Nozzle

Complete Universal Equipment Manufacturing / Uniblast Technologies F113-002 Gun A abrasive blast gun assembly equipped with a 5/16" tungsten carbide nozzle and 1/8" air jet.

Designed for suction-feed abrasive blasting systems, this complete gun assembly combines compressed air with abrasive media to provide a concentrated blast stream for cleaning, coating removal, surface preparation, and general industrial blasting.

Part Information:

• Manufacturer: Universal Equipment Manufacturing Company / Uniblast Technologies
• Part Number: F113-002
• Gun Designation: Gun A
• Product: Complete Abrasive Blast Gun Assembly
• Nozzle Material: Tungsten Carbide
• Nozzle Bore: 5/16"
• Air Jet: 1/8"
• Application: Suction-Feed Abrasive Blasting Equipment

OEM Cross-Reference:

• Universal / Uniblast F113-002

Includes:

• Complete Blast Gun Assembly
• 5/16" Tungsten Carbide Nozzle
• 1/8" Air Jet

Features:

• Genuine Universal / Uniblast blast gun assembly

• 5/16" tungsten carbide blast nozzle
• 1/8" air jet
• Designed for suction-feed abrasive blasting systems
• Concentrated blast stream for controlled surface preparation
• Tungsten carbide provides excellent resistance to abrasive wear
• Suitable for professional and industrial blast cabinets
• Complete assembly simplifies replacement and servicing
• Helps keep older Universal / Uniblast equipment in operation

Why Tungsten Carbide?

Tungsten carbide combines excellent wear resistance with the durability needed for demanding abrasive blasting applications.

It is a proven nozzle material for industrial blast cabinets, production work, equipment restoration, coating removal, and general-purpose abrasive blasting.

Actual nozzle life depends on the abrasive being used, media size, operating pressure, frequency of use, and other blasting conditions.

How a Suction Blast Gun Works

Compressed air passes through the 1/8" air jet, creating a low-pressure area inside the blast gun that draws abrasive media through the media hose.

The abrasive combines with the compressed-air stream and exits through the 5/16" tungsten carbide nozzle toward the work surface.

Correct matching of the nozzle, air jet, abrasive supply, and compressor capacity is important for consistent media pickup and efficient blasting.

Air Consumption / Compressor Requirements

Compressor Sizing Note: The F113-002 is equipped with a 5/16" tungsten carbide nozzle and 1/8" air jet. The accompanying CFM chart is provided as a general siphon-blast reference. Because air consumption varies with air-jet size, nozzle configuration, operating pressure, and system conditions, the chart should not be considered the exact CFM specification for the F113-002.

Applications:

• Suction-feed blast cabinets
• Industrial abrasive blasting
• Surface preparation
• Paint and coating removal
• Rust and corrosion removal
• Cleaning fabricated and machined components
• Equipment restoration
• Production blasting
• General industrial maintenance

Checking Nozzle Wear

Tungsten carbide provides excellent wear resistance, but every blast nozzle eventually wears.

As the nozzle bore enlarges, you may notice:

• Increased compressed-air demand
• Changes in the blast pattern
• Reduced abrasive velocity
• Reduced blasting efficiency
• Increased abrasive consumption
• Difficulty maintaining operating pressure

Periodically measuring the nozzle bore can help identify excessive wear before it noticeably affects blasting performance.

Finding Parts for Older Universal / Uniblast Equipment

Universal Equipment Manufacturing and Uniblast Technologies blasting equipment has been used in industrial applications for many years. Older manuals and parts information may identify blast guns by part number, gun designation, or nozzle/air-jet configuration.

For this assembly, the key identification information is:

Universal / Uniblast F113-002 – 5/16" Tungsten Carbide Nozzle with 1/8" Air Jet

Important:

This listing is for one Universal Equipment Manufacturing / Uniblast Technologies F113-002 Gun A complete blast gun assembly with 5/16" tungsten carbide nozzle and 1/8" air jet.

Always verify the F113-002 part number, nozzle size, and air-jet size required for your equipment before ordering.

Completely shut off and relieve compressed-air pressure before installing, removing, or servicing any blast gun, nozzle, hose, or related blasting component. Never operate abrasive blasting equipment with damaged or improperly secured components.

Need another part for your Universal or Uniblast abrasive blasting equipment? Contact us with the original part number, gun designation, or equipment model—we'll help you identify the correct part to keep your machine working.
