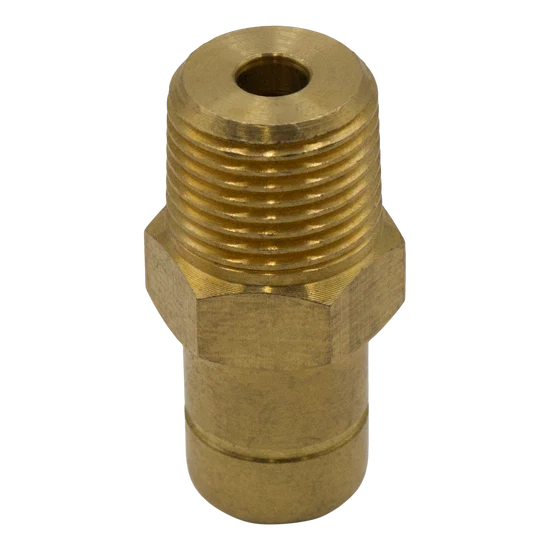

Suttner Thermal Relief Valve – 3/8" MPT, 140°F Auto Reset for Pressure Washers

Suttner Thermal Relief Valve – 3/8" MPT, 140°F Auto Reset for Pressure Washers

Protect your pressure washer pump from excessive heat with this Suttner 140°F Thermal Relief Valve. Featuring a 3/8" Male NPT connection and automatic reset operation, this valve helps prevent heat-related pump damage caused by excessively hot water during extended bypass operation.

When the water temperature reaches approximately 140°F, the valve opens to discharge hot water. Cooler incoming water can then enter the pump, helping lower the internal temperature. Once the temperature returns to a safe level, the valve automatically resets.

Specifications:

• Brand: Suttner

• Product: Thermal Relief Valve

• Inlet: 3/8" Male NPT

• Temperature Rating: 140°F

• Auto Reset: Yes

Applications:

• Cold water pressure washers

• Hot water pressure washers

• Commercial cleaning equipment

• Pressure washer pump systems

• Unloader bypass systems

Features:

• Activates at approximately 140°F

• 3/8" Male NPT connection

• Automatic reset operation

• Automatically discharges overheated water

• Helps protect pump seals, packings, and O-rings

• Helps extend pressure washer pump life

• Simple, automatic operation with no adjustment required

• Suttner quality for demanding pressure washer applications

What it does:

When a pressure washer is running with the trigger gun closed, the unloader may place the pump into bypass and recirculate water. Because the same water is repeatedly circulated through the pump, its temperature can rise quickly.

At approximately 140°F, the Suttner thermal relief valve opens and releases the overheated water. Cooler supply water can then enter the pump and reduce the temperature. The valve automatically resets once conditions return to normal.

Why it matters:

Excessive heat during bypass operation can contribute to:

• Damaged pump seals and O-rings

• Premature packing wear

• Water leaks

• Reduced pump life

• Costly repairs and equipment downtime

A thermal relief valve is a small and inexpensive component that can help protect one of the most expensive components on your pressure washer.

The Suttner 3/8" MPT 140°F Auto Reset Thermal Relief Valve is an excellent replacement or preventative-maintenance part for compatible commercial pressure washer systems.

Not sure if this is the correct thermal relief valve for your pressure washer? Reach out—we'll help you get the right part the first time.
