Replaces Titan SpeeFlo 174-050 L/T Packing Kit – Ranger 3:1

Replaces Titan SpeeFlo 174-050 L/T Packing Kit – Ranger 3:1

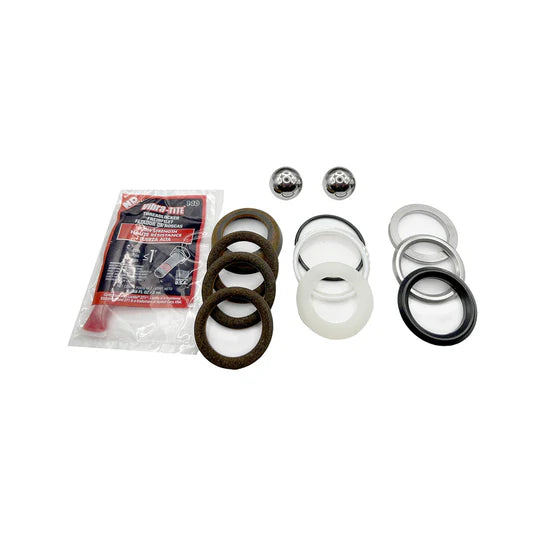

Rebuild the fluid section on your Titan / SpeeFlo Ranger 3:1 with this aftermarket L/T packing kit that replaces Titan SpeeFlo Part #174-050.

This packing kit services the wear and sealing components inside the Ranger 3:1 fluid section. Worn packings can allow material to bypass the piston, resulting in fluid leakage, reduced output, pressure loss, and excessive pump cycling.

Part Information:

• Replaces Titan / SpeeFlo Part Number: 174-050
• Product: Fluid Section Packing Kit
• Packing Type: L/T
• Type: Aftermarket
• Application: Fluid Section / Displacement Pump Repair
• Equipment Type: Air-Powered Airless Pump
• Brand Compatibility: Titan / SpeeFlo

Fits Titan / SpeeFlo Equipment:

• Ranger 3:1

Features:

• Replaces Titan / SpeeFlo 174-050
• L/T fluid-section packing kit
• Designed for the Ranger 3:1
• Services common sealing and wear components in the displacement pump
• Quality aftermarket repair components
• Helps correct leakage caused by worn pump packings
• Ideal for fluid-section rebuilding and routine maintenance
• Economical alternative to replacing the complete fluid section
• Helps keep older Titan / SpeeFlo equipment in service

What the Packing Kit Does

The packings inside the fluid section form a seal around the moving piston or displacement rod as the pump cycles.

As these components wear, coating can begin to bypass the packings instead of being efficiently moved through the pump. This can reduce pump performance and eventually cause visible leakage.

Installing a new packing kit restores the critical sealing components when the rest of the fluid section remains serviceable.

Common Signs Your Fluid Section May Need New Packings:

• Fluid leaking around the pump packings
• Pump will not maintain pressure
• Reduced fluid output
• Excessive pump cycling
• Pump has difficulty priming
• Packing leakage continues after normal adjustment
• Inconsistent material delivery
• Visible wear or damage to the packings during disassembly

Inspect the Hard Parts While You're In There

New packings can only seal properly when the surfaces they run against are in good condition.

While rebuilding the Ranger 3:1 fluid section, inspect the:

• Piston / displacement rod
• Cylinder
• Upper and lower packing areas
• Packing glands
• Inlet valve
• Outlet valve
• Balls and seats
• O-rings and sealing surfaces

A scored or pitted rod or cylinder can quickly damage a new set of packings and result in another leak.

Keeping Older Titan & SpeeFlo Pumps Working

The Ranger 3:1 is older professional equipment, and identifying repair parts can become more difficult as machines age and original documentation becomes harder to find.

That's why we include the original Titan / SpeeFlo part number and equipment model whenever possible. For this kit, the key identification number is 174-050.

If your existing pump or parts breakdown specifies 174-050, this kit provides an aftermarket option for servicing the fluid section without replacing the complete pump.

Important:

This listing is for one aftermarket L/T fluid-section packing kit that replaces Titan / SpeeFlo Part #174-050.

This is an aftermarket repair kit and is not manufactured by Titan or SpeeFlo.

Because older equipment may have been repaired, modified, or fitted with a different fluid section during its service life, always verify the 174-050 part number for the pump currently installed on your machine before ordering.

Disconnect the compressed-air supply and completely relieve both air and fluid pressure before servicing the pump.

Need help identifying repair parts for an older Titan or SpeeFlo pump? Contact us with your equipment model and original part number—we'll help you find the correct parts to keep your equipment working.
