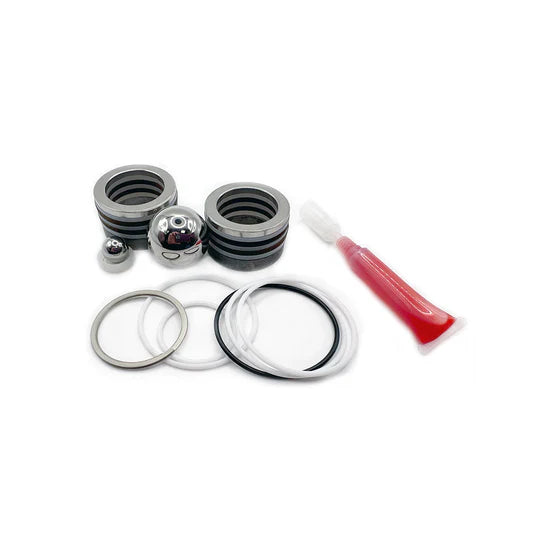

Replaces Titan 537907 L/PE Fluid Section Packing Kit – PowrBeast 7700 & 9700

Replaces Titan 537907 L/PE Fluid Section Packing Kit – PowrBeast 7700 & 9700

Rebuild the fluid section on your Titan PowrBeast airless paint sprayer with this aftermarket L/PE packing kit that replaces Titan Part #537907 / 0537907.

This kit is designed for the Titan PowrBeast 7700 and PowrBeast 9700 fluid sections and provides the primary sealing and wear components needed during routine pump service. Titan identifies 537907 as the minor fluid-section service kit for these machines.

Part Information:

• Replaces Titan Part Number: 537907 / 0537907
• Product: Fluid Section Minor Repair / Packing Kit
• Packing Type: Leather / Polyethylene (L/PE)
• Type: Aftermarket
• Application: Airless Paint Sprayer Fluid Section
• Brand Compatibility: Titan

Fits Titan Airless Paint Sprayers:

• PowrBeast 7700
• PowrBeast 9700

Features:

• Replaces Titan 537907 / 0537907
• Minor fluid-section service kit
• L/PE packing configuration
• Designed for the PowrBeast 7700 and 9700
• Services common sealing and wear components in the displacement pump
• Quality aftermarket repair components
• Helps correct fluid leakage and pressure loss caused by worn packings
• Ideal for routine fluid-section maintenance
• Economical alternative to replacing the complete fluid section

What the Packing Kit Does

The packings inside the PowrBeast fluid section create the seal around the moving piston while the pump develops the high fluid pressures required for airless spraying.

Titan's PowrBeast 7700 and 9700 are high-output machines rated for up to 3300 PSI, with the 7700 capable of up to 2.0 GPM and the 9700 up to 3.0 GPM.

Over time, normal operation, abrasive coatings, contamination, and dried material can wear the packings and sealing components. Once those seals deteriorate, coating can begin bypassing the piston instead of being efficiently pumped through the sprayer.

Common Signs Your Fluid Section May Need Service:

• Fluid leaking around the pump packings
• Sprayer has difficulty maintaining pressure
• Excessive pump cycling
• Reduced fluid output
• Difficulty priming
• Inconsistent spray pressure
• Packing leakage that cannot be corrected through normal adjustment
• Visible wear or damage during pump inspection

Minor Kit vs. Major Fluid Section Repair

This is an important distinction on these machines.

Titan 537907 is the minor fluid-section service kit. Titan also lists 537908 as the major service kit for the PowrBeast 7700/9700 fluid section.

The minor kit is appropriate when servicing the normal sealing and packing wear components. If the pump has significant mechanical wear or damaged hard parts, additional components—or the major service kit—may be required.

Inspect the Hard Parts While You're In There

Before installing new packings, inspect the rest of the fluid section carefully.

Pay particular attention to the:

• Piston / displacement rod
• Fluid section cylinder
• Upper and lower packing areas
• Foot valve assembly
• Outlet valve assembly
• Valve balls and seats
• O-rings and sealing surfaces

Installing new packings against a badly scored or worn piston or cylinder can result in a short-lived repair.

L/PE Packing Construction

The PowrBeast 7700/9700 parts information identifies the packing configuration as leather/UHMWPE/steel.

Leather and polyethylene-style packing combinations have long been used in professional airless equipment because the different materials work together to provide sealing and wear resistance under demanding operating conditions.

Keeping Your PowrBeast Working

The PowrBeast 7700 and 9700 are heavy-duty professional sprayers designed for high-output applications. Their fluid sections are specifically designed to be field serviceable, making packing and fluid-section maintenance a normal part of keeping these machines productive.

Rather than replacing an otherwise serviceable fluid section because of worn seals, a properly performed rebuild can restore the sealing necessary for reliable pump operation.

Important:

This listing is for one aftermarket L/PE fluid section packing/minor repair kit that replaces Titan Part #537907 / 0537907.

This is an aftermarket component and is not manufactured by Titan.

Always verify the 537907 / 0537907 part number and the fluid section installed on your machine before ordering.

Completely relieve fluid pressure and follow the manufacturer's pressure-relief procedure before servicing any airless spray equipment.

Need help identifying fluid-section or repair parts for your Titan PowrBeast? Contact us with your sprayer model and original part number—we'll help you find the correct parts to keep your equipment working.
