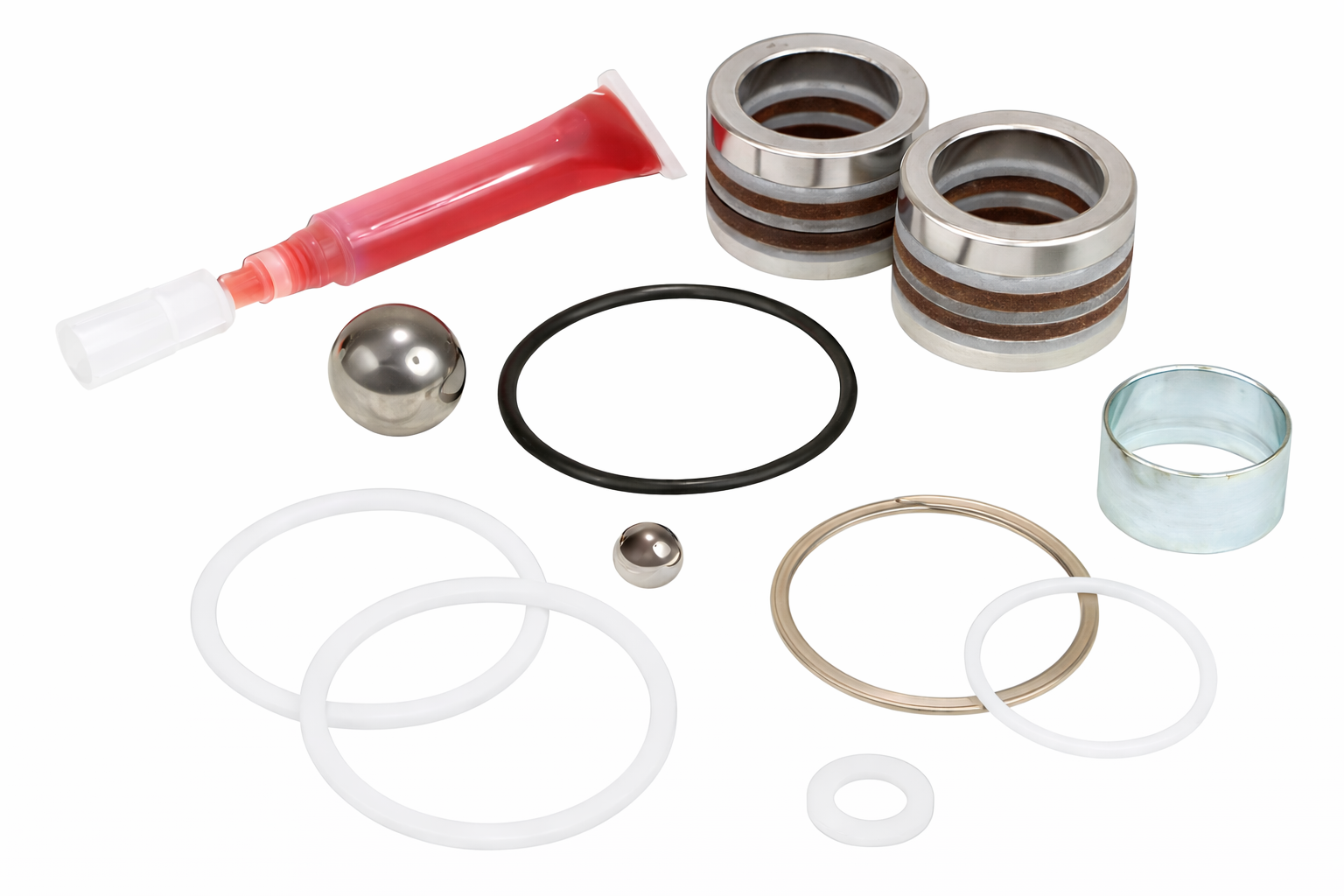

Replaces Titan 0537905 L/PE Fluid Section Packing Kit – PowrBeast 4700

Rebuild the fluid section on your Titan PowrBeast 4700 with this aftermarket L/PE packing kit that replaces Titan Part #0537905.

This kit services the primary wear and sealing components inside the displacement pump. Worn fluid-section packings can cause material leakage, reduced output, pressure loss, excessive cycling, and inconsistent pump performance.

Part Information:

• Replaces Titan Part Number: 0537905
• Product: Fluid Section Packing Kit
• Packing Configuration: L/PE
• Type: Aftermarket
• Application: Fluid Section / Displacement Pump Repair
• Equipment Type: Professional Airless Paint Sprayer
• Brand Compatibility: Titan

Fits Titan Airless Sprayers:

• PowrBeast 4700

Features:

• Replaces Titan 0537905
• L/PE fluid-section packing kit
• Designed for the Titan PowrBeast 4700
• Services common wear and sealing components in the displacement pump
• Quality aftermarket repair components
• Ideal for fluid-section rebuilding and maintenance
• Helps correct leakage caused by worn pump packings
• Helps restore consistent fluid-section performance
• Economical alternative to replacing the complete fluid section

What the Packing Kit Does

The packings inside the fluid section form a high-pressure seal around the moving piston rod while allowing it to reciprocate through the pump.

These components are subjected to continuous friction, high fluid pressure, and exposure to the coating being sprayed. Over time, the packings wear and lose their ability to maintain an effective seal.

When this happens, material can begin bypassing the packings, resulting in leakage and reduced pump efficiency.

Common Signs Your Fluid Section May Need New Packings:

• Fluid leaking around the piston rod or packing area
• Pump will not maintain pressure
• Excessive pump cycling
• Reduced material output
• Inconsistent spray pressure
• Packing leakage continues after normal adjustment
• Visible wear or damage during fluid-section inspection
• Sprayer has accumulated substantial operating hours

Inspect the Hard Parts Before Installing New Packings

A packing kit can only perform properly when the components it seals against are in good condition.

While rebuilding your PowrBeast 4700 fluid section, inspect the:

• Piston rod
• Cylinder
• Upper and lower packing areas
• Packing glands
• Inlet valve
• Piston outlet valve
• Valve balls and seats
• O-rings and sealing surfaces

Pay particular attention to the working surface of the piston rod.

Run your fingernail across the rod where the packings travel. If you can feel grooves, scoring, pitting, or other surface damage, installing new packings alone may only provide a temporary repair. Every stroke of the pump will drag the new packings across that damaged surface.

Don't Overlook the Check Valves

A PowrBeast that won't prime, build pressure, or hold pressure doesn't automatically have bad packings.

Debris or wear in the inlet or piston outlet check valves can create similar symptoms. During a fluid-section rebuild, inspect the balls, seats, and related valve components and replace damaged parts as necessary.

Rebuilding Your PowrBeast Fluid Section

The PowrBeast is professional equipment designed to be serviced rather than discarded when normal wear occurs.

A proper fluid-section rebuild should address the condition of the entire pumping assembly—not simply install new packings and put the machine back together.

Taking a few extra minutes to inspect the rod, cylinder, valves, and sealing surfaces can prevent a new packing kit from being damaged by another worn component.

Important:

This listing is for one aftermarket L/PE fluid-section packing kit that replaces Titan Part #0537905.

This is an aftermarket repair kit and is not manufactured by Titan.

The piston rod, cylinder, valve components, and other fluid-section hard parts are sold separately unless specifically stated otherwise.

Always verify Titan Part #0537905 for the fluid section installed on your PowrBeast 4700 before ordering.

Completely relieve fluid pressure, shut down the sprayer, and follow Titan's pressure-relief procedure before servicing the fluid section.

Need help identifying fluid-section repair parts for your Titan PowrBeast? Contact us with your sprayer model and original part number—we'll help you find the correct parts to keep your equipment working.
