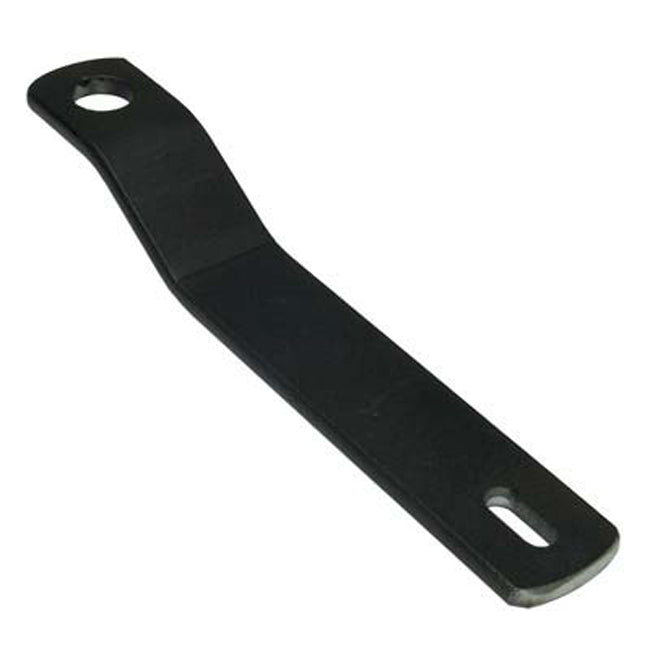

PK Lindsay C-4X Small Mixing Valve Spindle Arm – Diagram #14 – Models 15, 25, 35 & 100

Keep your older PK Lindsay abrasive blasting equipment in service with the C-4X Small Mixing Valve Spindle Arm. This component is used in the small mixing valve assembly found on PK Lindsay Models 15, 25, 35, and 100.

The C-4X is identified as Item #14 in the exploded parts diagram, making it easy to verify the correct component before ordering.

Part Information:

• Part Number: C-4X
• Product: Small Mixing Valve Spindle Arm
• Diagram Item: #14
• Application: PK Lindsay Small Mixing Valve
• Equipment Type: Abrasive Blasting Equipment

Fits PK Lindsay Models:

• Model 15
• Model 25
• Model 35
• Model 100

Includes:

Exploded Diagram Item #14

Refer to the exploded parts diagram below to identify the component included with this listing.

Applications:

• PK Lindsay abrasive blast pots
• Sandblasting equipment
• Pressure blasting machines
• Small mixing valve assemblies
• Commercial and industrial abrasive blasting equipment

Features:

• PK Lindsay C-4X small mixing valve spindle arm
• Identified as #14 in the exploded parts diagram
• Fits Models 15, 25, 35 & 100
• Individual service component for the small mixing valve assembly
• Ideal for repairing or rebuilding an existing mixing valve
• Helps restore proper adjustment and operation
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The small mixing valve regulates the amount of abrasive media introduced into the compressed air stream. The C-4X spindle arm is part of the valve's adjustment mechanism, working with the spindle and related components to control the mixing valve position and abrasive flow.

Years of use, repeated adjustment, corrosion, or mechanical wear can eventually damage the spindle arm or create excessive play in the adjustment mechanism.

Replacing a worn or damaged spindle arm can help restore smooth, dependable adjustment without replacing the complete mixing valve.

Common Signs the Spindle Arm May Need Replacement:

• Mixing valve is difficult to adjust
• Excessive play in the adjustment mechanism
• Valve will not maintain the desired setting
• Bent or damaged spindle arm
• Worn connection points
• Inconsistent abrasive adjustment

Finding Parts for Older PK Lindsay Equipment

PK Lindsay blast machines may no longer be manufactured, but many are still in service. Finding individual components can be difficult, particularly when you're working from an older exploded parts diagram.

That's why we include the original PK Lindsay part number and diagram item number whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay C-4X Small Mixing Valve Spindle Arm – Diagram Item #14 only.

Other components shown in the exploded parts diagram are sold separately unless specifically stated otherwise.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
