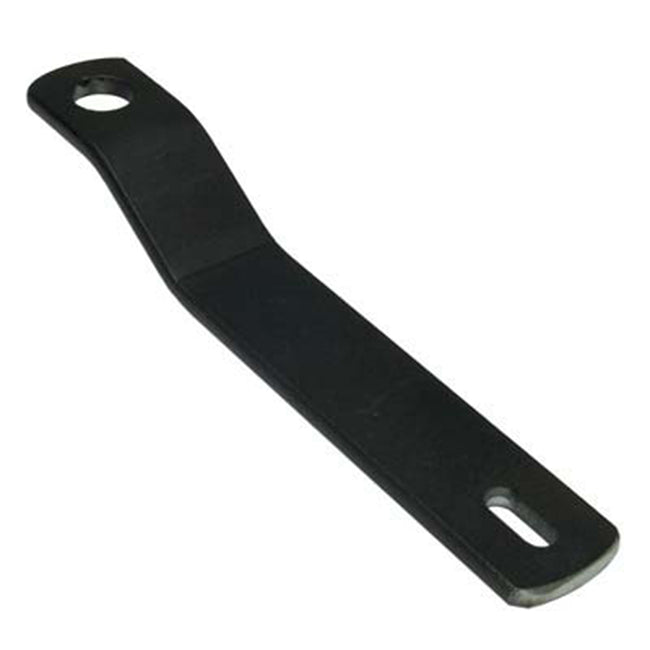

PK Lindsay C-4X Medium Mixing Valve Spindle Arm – Diagram #14 – Models 200E & 300E

Keep your older PK Lindsay abrasive blasting equipment in service with the C-4X Medium Mixing Valve Spindle Arm. This spindle arm is part of the adjustment mechanism used on the medium mixing valve found on PK Lindsay Models 200E and 300E.

The C-4X is identified as Item #14 in the exploded parts diagram, making it easy to verify the correct component before ordering.

Part Information:

• Part Number: C-4X
• Product: Medium Mixing Valve Spindle Arm
• Diagram Item: #14
• Application: PK Lindsay Medium Mixing Valve
• Equipment Type: Abrasive Blasting Equipment

Fits PK Lindsay Models:

• Model 200E
• Model 300E

Includes:

Exploded Diagram Item #14

Refer to the exploded parts diagram below to identify the component included with this listing.

Applications:

• PK Lindsay abrasive blast pots
• Pressure sandblasting equipment
• Medium mixing valve assemblies
• Commercial abrasive blasting systems
• Industrial surface preparation equipment

Features:

• PK Lindsay C-4X medium mixing valve spindle arm
• Identified as #14 in the exploded parts diagram
• Fits Models 200E & 300E
• Component of the mixing valve adjustment mechanism
• Ideal for repairing or rebuilding an existing mixing valve
• Replaces a worn, bent, damaged, or missing spindle arm
• Helps restore proper abrasive adjustment
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The C-4X Spindle Arm is part of the adjustment mechanism of the PK Lindsay medium mixing valve. It works with the spindle and related components to control the position of the mixing valve and regulate the amount of abrasive entering the compressed air stream.

Years of repeated adjustment, corrosion, or mechanical wear can eventually cause the spindle arm to become worn, bent, or damaged. Excessive wear can create unwanted play in the adjustment mechanism and make accurate abrasive control more difficult.

Replacing a damaged spindle arm can help restore smooth and dependable adjustment without replacing the complete mixing valve.

Common Signs the Spindle Arm May Need Replacement:

• Mixing valve is difficult to adjust
• Excessive play in the adjustment mechanism
• Valve will not maintain the desired setting
• Spindle arm is bent or physically damaged
• Worn connection or pivot points
• Corrosion or excessive deterioration

Important – Complete Valve Buyers:

The C-4X Spindle Arm is NOT included with the PK Lindsay 100-198 Complete Medium Mixing Valve Assembly.

If you are installing a 100-198 valve and your existing C-4X spindle arm is worn, damaged, or missing, this part will need to be purchased separately.

Finding Parts for Older PK Lindsay Equipment

PK Lindsay blast machines may no longer be manufactured, but many 200E and 300E machines remain in service. Individual mixing valve components can be difficult to identify and locate when you're working from an older exploded parts diagram.

That's why we include the original PK Lindsay part number and exploded diagram item number whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay C-4X Medium Mixing Valve Spindle Arm – Diagram Item #14 only.

Other components shown in the exploded parts diagram are sold separately unless specifically stated otherwise.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
