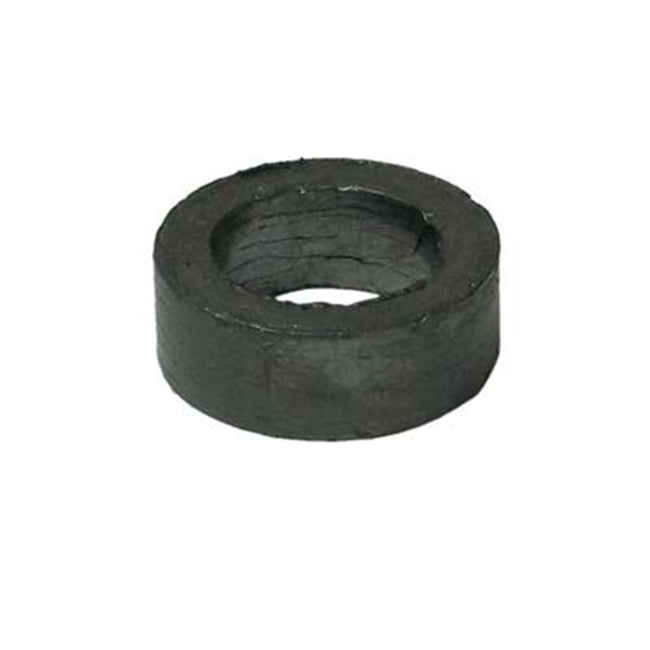

PK Lindsay C-32 Large Mixing Valve Spindle Packing – Diagram #11 – Models 300LA & 600LA

Keep your older PK Lindsay abrasive blasting equipment in service with the C-32 Large Mixing Valve Spindle Packing. This packing is an internal sealing component used around the spindle of the large mixing valve found on PK Lindsay Models 300LA and 600LA.

The C-32 is identified as Item #11 in the exploded parts diagram, making it easy to verify the correct component before ordering.

Part Information:

• Part Number: C-32
• Product: Large Mixing Valve Spindle Packing
• Diagram Item: #11
• Application: PK Lindsay Large Mixing Valve
• Equipment Type: Abrasive Blasting Equipment

Fits PK Lindsay Models:

• Model 300LA
• Model 600LA

Includes:

Exploded Diagram Item #11

Refer to the exploded parts diagram below to identify the component included with this listing.

Applications:

• PK Lindsay abrasive blast pots
• Pressure sandblasting equipment
• Large mixing valve assemblies
• Commercial abrasive blasting systems
• Industrial surface preparation equipment

Features:

• PK Lindsay C-32 large mixing valve spindle packing
• Identified as #11 in the exploded parts diagram
• Fits Models 300LA & 600LA
• Sealing component for the mixing valve spindle
• Works with the C-31 Packing Gland – Diagram Item #10
• Ideal for repairing or rebuilding an existing large mixing valve
• Helps maintain proper sealing around the spindle
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The C-32 Spindle Packing provides a seal around the mixing valve spindle while still allowing the spindle to move during abrasive flow adjustment.

The packing works together with the C-31 Packing Gland to maintain proper compression and sealing around the spindle. Because the spindle moves during normal valve adjustment, the packing is a natural wear item and can gradually become compressed, hardened, or deteriorated.

Worn spindle packing can allow air or abrasive to leak around the spindle area and may affect smooth valve operation. Replacing the packing during valve service can help restore proper sealing and extend the service life of the existing mixing valve.

Common Signs the Spindle Packing May Need Replacement:

• Air leakage around the mixing valve spindle
• Abrasive or dust escaping around the spindle
• Packing is hard, brittle, or deteriorated
• Existing packing is excessively compressed
• Leakage continues after adjusting the packing gland
• Valve has been disassembled for servicing
• Performing a complete large mixing valve rebuild

Also Included in the 7-36A Rebuild Kit

The C-32 Spindle Packing – Diagram Item #11 is also included in the PK Lindsay 7-36A Large Mixing Valve Rebuild Kit.

If the packing and several other internal components are showing wear, the complete 7-36A rebuild kit may be more economical than purchasing the individual parts separately.

Finding Parts for Older PK Lindsay Equipment

PK Lindsay blast machines may no longer be manufactured, but many 300LA and 600LA machines remain in service. Small internal components such as spindle packing can be especially difficult to identify when you're working from an older exploded parts diagram.

That's why we include the original PK Lindsay part number and exploded diagram item number whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay C-32 Large Mixing Valve Spindle Packing – Diagram Item #11 only.

The spindle, packing gland, and other components shown in the exploded parts diagram are sold separately unless specifically stated otherwise.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
