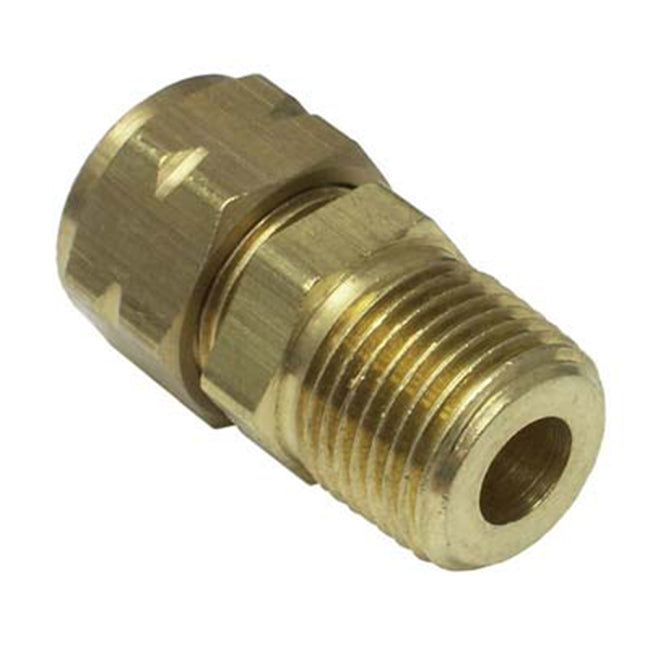

PK Lindsay 801-715 Type 2 Nozzle Coupling Hose End – Diagram #8 & #9 – Sandblaster

Keep your older PK Lindsay abrasive blasting equipment in service with the 801-715 Type 2 Nozzle Coupling Hose End. This assembly is used at the nozzle end of the blast hose and provides the connection for the Type 2 sandblast nozzle assembly.

The 801-715 includes Items #8 and #9 in the exploded parts diagram, making it easy to verify exactly what is included before ordering.

Part Information:

• Part Number: 801-715
• Product: Type 2 Nozzle Coupling Hose End
• Diagram Items: #8 & #9
• Application: Sandblast Nozzle / Blast Hose Assembly
• Equipment Type: Abrasive Blasting Equipment

Includes:

• Exploded Diagram Item #8 – Nozzle Coupling Hose End
• Exploded Diagram Item #9 – 801-703 Type 2 Nozzle Coupling Washer

Refer to the exploded parts diagram below to identify the components included with this listing.

Applications:

• PK Lindsay abrasive blasting equipment
• Type 2 nozzle coupling assemblies
• Sandblast nozzle and tip assemblies
• Abrasive blast hose connections
• Pressure sandblasting equipment
• Commercial and industrial surface preparation equipment

Features:

• PK Lindsay 801-715 Type 2 nozzle coupling hose end
• Includes Diagram Items #8 & #9
• Includes the 801-703 Type 2 Nozzle Coupling Washer
• Used at the nozzle end of the sandblast hose
• Provides the connection between the blast hose and nozzle assembly
• Ideal for repairing or rebuilding an existing nozzle coupling
• Replaces a worn, damaged, or incomplete hose-end assembly
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The 801-715 Type 2 Nozzle Coupling Hose End provides the connection between the abrasive blast hose and the nozzle assembly. A secure, properly assembled coupling is essential because this connection is exposed to compressed air and high-velocity abrasive media whenever the machine is operating.

The nozzle end of a blast hose also receives considerable physical abuse from dragging, repositioning, repeated nozzle changes, and normal jobsite use. Over time, the coupling can become worn or damaged and the internal washer can deteriorate.

The 801-715 provides both Diagram Item #8 and the #9 coupling washer, allowing these components to be serviced together.

Common Reasons for Replacement:

• Hose-end coupling is worn or damaged
• Coupling threads or connection surfaces are damaged
• Excessive abrasive wear
• Coupling is cracked, distorted, or heavily corroded
• Nozzle will no longer attach securely
• Existing washer is worn or deteriorated
• Original coupling components are missing
• Rebuilding an older PK Lindsay blast hose assembly

Included 801-703 Washer

This 801-715 assembly includes the 801-703 Type 2 Nozzle Coupling Washer – Diagram Item #9.

The 801-703 washer is also available separately if your existing hose end is still serviceable and only the washer needs replacement.

Finding Parts for Older PK Lindsay Equipment

PK Lindsay abrasive blasting equipment may no longer be manufactured, but many of these machines remain in service. Blast hose couplings, nozzle components, washers, seals, and related hardware can be particularly difficult to identify when working from an older exploded parts diagram.

That's why we include the original PK Lindsay part numbers and exploded diagram item numbers whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay 801-715 Type 2 Nozzle Coupling Hose End – Diagram Items #8 & #9.

The blast hose, nozzle, and other components shown in the exploded parts diagram are sold separately unless specifically stated otherwise.

Always completely depressurize the blast machine before servicing the blast hose, nozzle, coupling, or any other component of the blasting system. Never operate abrasive blasting equipment with a damaged or insecure hose or nozzle connection.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
