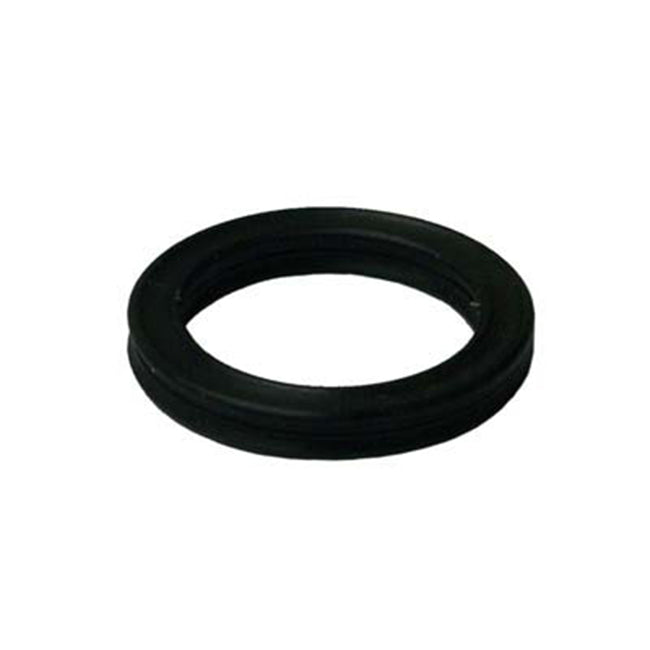

PK Lindsay 800-001 Large Mixing Valve Cushion – Diagram #4 – Models 300LA & 600LA

Keep your older PK Lindsay abrasive blasting equipment in service with the 800-001 Large Mixing Valve Cushion. This cushion is an internal wear component used in the large mixing valve assembly found on PK Lindsay Models 300LA and 600LA.

The 800-001 is identified as Item #4 in the exploded parts diagram, making it easy to verify the correct component before ordering.

Part Information:

• Part Number: 800-001
• Product: Large Mixing Valve Cushion
• Diagram Item: #4
• Application: PK Lindsay Large Mixing Valve
• Equipment Type: Abrasive Blasting Equipment

Fits PK Lindsay Models:

• Model 300LA
• Model 600LA

Includes:

Exploded Diagram Item #4

Refer to the exploded parts diagram below to identify the component included with this listing.

Applications:

• PK Lindsay abrasive blast pots
• Pressure sandblasting equipment
• Large mixing valve assemblies
• Commercial abrasive blasting systems
• Industrial surface preparation equipment

Features:

• PK Lindsay 800-001 large mixing valve cushion
• Identified as #4 in the exploded parts diagram
• Fits Models 300LA & 600LA
• Internal wear component of the large mixing valve
• Ideal for repairing or rebuilding an existing valve
• Replaces a worn, damaged, or deteriorated cushion
• Helps maintain proper operation of the mixing valve assembly
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The 800-001 Cushion is an internal component of the PK Lindsay large mixing valve assembly. It works with the other valve components to help maintain proper positioning and operation of the abrasive metering mechanism.

The inside of a mixing valve is subjected to a particularly harsh environment. Abrasive media, repeated valve movement, and normal mechanical wear can gradually deteriorate the cushion and related internal components.

Replacing a worn cushion during valve service can help restore proper operation and extend the usable life of the existing large mixing valve.

Common Reasons for Replacement:

• Cushion is worn or deteriorated
• Visible abrasive wear
• Cushion is cracked, distorted, or damaged
• Mixing valve adjustment has become inconsistent
• Existing cushion is missing
• Valve is being disassembled for repair
• Performing a complete large mixing valve rebuild

Also Included in the 7-36A Rebuild Kit

The 800-001 Cushion – Diagram Item #4 is also included in the PK Lindsay 7-36A Large Mixing Valve Rebuild Kit.

The 7-36A kit includes two Item #4 cushions, along with the other primary internal wear components needed to rebuild the large mixing valve.

If several internal parts are showing wear, the complete 7-36A rebuild kit may be more economical than purchasing the components individually.

Finding Parts for Older PK Lindsay Equipment

PK Lindsay blast machines may no longer be manufactured, but many 300LA and 600LA machines remain in service. Individual large mixing valve components can be difficult to identify and locate when you're working from an older exploded parts diagram.

That's why we include the original PK Lindsay part number and exploded diagram item number whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay 800-001 Large Mixing Valve Cushion – Diagram Item #4 only.

Other components shown in the exploded parts diagram are sold separately unless specifically stated otherwise.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
