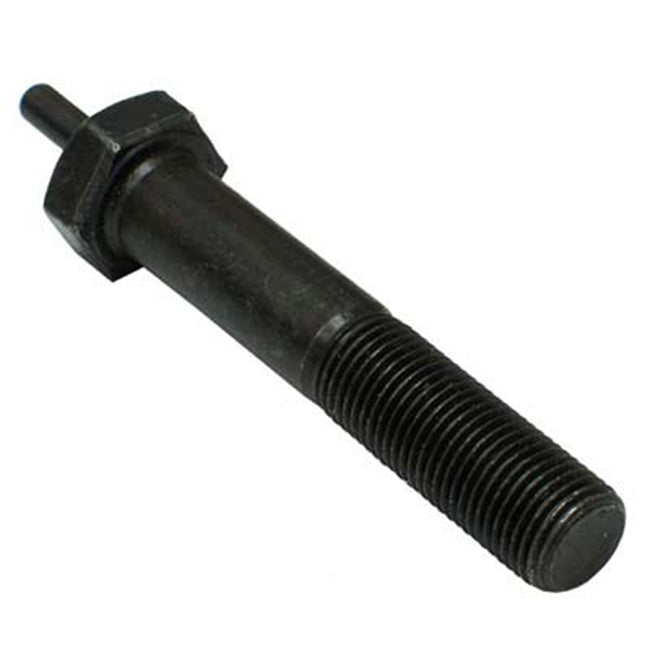

PK Lindsay 7-03CS Large Mixing Valve Cover Bolt with Stop – Diagram #15 – Models 300LA & 600LA

Keep your older PK Lindsay abrasive blasting equipment in service with the 7-03CS Large Mixing Valve Cover Bolt with Stop. This bolt is part of the adjustment mechanism used with the large mixing valve assembly found on PK Lindsay Models 300LA and 600LA.

The 7-03CS is identified as Item #15 in the exploded parts diagram, making it easy to verify the correct component before ordering.

Part Information:

• Part Number: 7-03CS
• Product: Large Mixing Valve Cover Bolt with Stop
• Diagram Item: #15
• Application: PK Lindsay Large Mixing Valve
• Equipment Type: Abrasive Blasting Equipment

Fits PK Lindsay Models:

• Model 300LA
• Model 600LA

Includes:

Exploded Diagram Item #15

Refer to the exploded parts diagram below to identify the component included with this listing.

Applications:

• PK Lindsay abrasive blast pots
• Pressure sandblasting equipment
• Large mixing valve assemblies
• Commercial abrasive blasting systems
• Industrial surface preparation equipment

Features:

• PK Lindsay 7-03CS large mixing valve cover bolt with stop
• Identified as #15 in the exploded parts diagram
• Fits Models 300LA & 600LA
• Component of the large mixing valve adjustment mechanism
• Works with the spindle arm and related valve components
• Ideal for repairing or rebuilding an existing large mixing valve
• Replaces a worn, bent, damaged, or missing bolt with stop
• Helps restore proper mixing valve adjustment
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The 7-03CS Bolt with Stop is part of the mechanical adjustment system of the PK Lindsay large mixing valve. It works with the spindle arm and related components to control movement of the valve adjustment mechanism.

The stop helps limit movement of the mechanism, allowing the mixing valve to operate within its intended adjustment range.

Years of repeated adjustment, corrosion, or mechanical wear can damage the bolt, threads, or stop. A worn or damaged component can introduce excessive movement or interfere with proper abrasive flow adjustment.

Common Reasons for Replacement:

• Bolt is bent or physically damaged
• Stop is worn or damaged
• Threads are stripped or deteriorated
• Excessive corrosion
• Adjustment mechanism has excessive movement
• Bolt is seized or difficult to operate
• Original bolt is missing from an incomplete valve assembly
• Rebuilding an existing large mixing valve

Important When Rebuilding the Valve

The 7-03CS Cover Bolt with Stop – Diagram Item #15 is not included in the PK Lindsay 7-36A Large Mixing Valve Rebuild Kit.

If you're rebuilding the valve with the 7-36A kit, inspect the existing bolt and stop and replace it separately if worn, damaged, or missing.

Finding Parts for Older PK Lindsay Equipment

PK Lindsay blast machines may no longer be manufactured, but many 300LA and 600LA machines remain in service. Individual large mixing valve components can be difficult to identify and locate when you're working from an older exploded parts diagram.

That's why we include the original PK Lindsay part number and exploded diagram item number whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay 7-03CS Large Mixing Valve Cover Bolt with Stop – Diagram Item #15 only.

Other components shown in the exploded parts diagram are sold separately unless specifically stated otherwise.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
