PK Lindsay 6-36A Medium Mixing Valve Rebuild Kit – Models 200E & 300E

Keep your older PK Lindsay abrasive blasting equipment in service with the 6-36A Medium Mixing Valve Rebuild Kit. This kit contains the primary internal wear and service components needed to rebuild the medium mixing valve used on PK Lindsay Models 200E and 300E.

The individual components are identified by their exploded diagram item numbers, making it easy to verify exactly what is included before ordering.

Part Information:

• Part Number: 6-36A
• Product: Medium Mixing Valve Rebuild Kit
• Application: PK Lindsay Medium Mixing Valve
• Fits: Models 200E & 300E
• Equipment Type: Abrasive Blasting Equipment

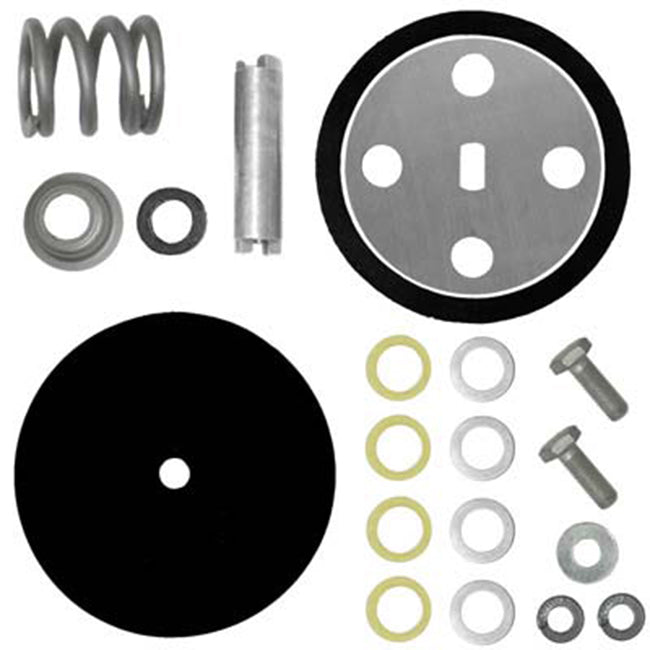

Kit Includes:

Exploded Diagram Items:

• (4) Item #3
• (4) Item #4
• (2) Item #5
• (2) Item #6
• (1) Item #7
• (1) Item #8
• (1) Item #9
• (1) Item #10
• (1) Item #11
• (1) Item #12

Also Includes:

• (1) PK Lindsay 800-199 Filler Plug Gasket

Refer to the exploded parts diagram below to identify the individual components included with this kit.

Fits PK Lindsay Models:

• Model 200E
• Model 300E

Applications:

• PK Lindsay abrasive blast pots
• Sandblasting equipment
• Pressure blasting machines
• Medium mixing valve assemblies
• Commercial and industrial abrasive blasting equipment

Features:

• Comprehensive medium mixing valve rebuild kit
• Fits PK Lindsay Models 200E & 300E
• Includes multiple internal wear and service components
• Components identified by exploded diagram item number
• Includes 800-199 filler plug gasket
• Helps restore proper abrasive metering and adjustment
• Cost-effective way to rebuild an otherwise serviceable mixing valve
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The medium mixing valve controls the amount of abrasive media introduced into the compressed air stream at the bottom of the blast pot.

Because abrasive continuously passes through the valve, its internal components are subjected to considerable wear. Over time, this can cause inconsistent abrasive delivery, poor adjustment, leakage, or difficulty controlling the abrasive mixture.

The PK Lindsay 6-36A Medium Mixing Valve Rebuild Kit provides the primary wear components needed to service the existing valve and restore dependable operation.

Common Signs Your Mixing Valve May Need Rebuilding:

• Abrasive flow is difficult to adjust
• Excessive or insufficient abrasive delivery
• Inconsistent abrasive flow
• Air or abrasive leakage from the valve
• Adjustment mechanism is worn or difficult to operate
• Internal components show visible wear

Rebuild Your Existing Mixing Valve

If the main valve body and other major components are still in good condition, rebuilding the existing mixing valve can be much more economical than replacing the complete assembly.

Installing the 6-36A rebuild kit also allows multiple wear components to be replaced at the same time rather than repairing the valve one piece at a time.

Keeping Older PK Lindsay Equipment Working

PK Lindsay blast machines may no longer be manufactured, but many 200E and 300E machines are still in service. Finding individual repair components for these older machines can be difficult, particularly when you're working from an old exploded parts diagram.

That's why we include the original PK Lindsay part numbers, quantities, and exploded diagram item numbers whenever possible—so you know exactly what you're buying before ordering.

Important:

This listing is for the PK Lindsay 6-36A Medium Mixing Valve Rebuild Kit for Models 200E & 300E and includes the components specifically listed above.

Other components shown in the exploded parts diagram are not included unless specifically listed.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
