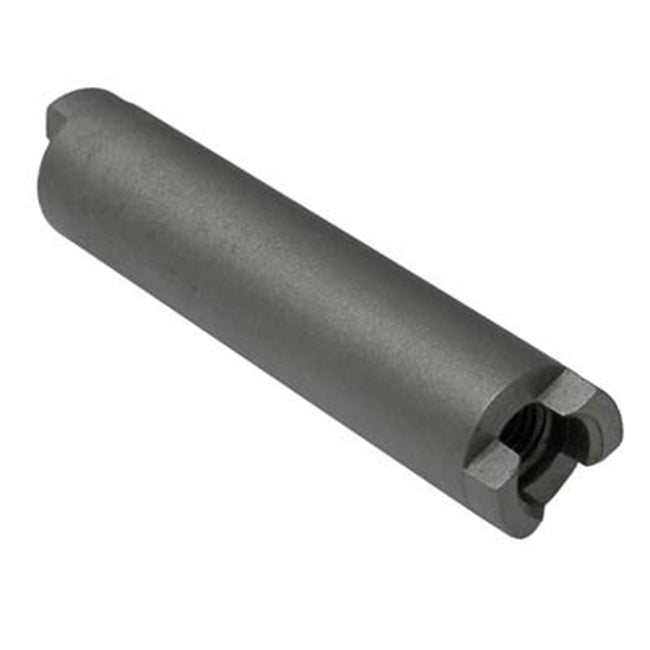

PK Lindsay 100-084 Large Mixing Valve Spindle – Diagram #8 – Models 300LA & 600LA

Keep your older PK Lindsay abrasive blasting equipment in service with the 100-084 Large Mixing Valve Spindle. This spindle is a key internal component of the large mixing valve assembly used on PK Lindsay Models 300LA and 600LA.

The 100-084 is identified as Item #8 in the exploded parts diagram, making it easy to verify the correct component before ordering.

Part Information:

• Part Number: 100-084
• Product: Large Mixing Valve Spindle
• Diagram Item: #8
• Application: PK Lindsay Large Mixing Valve
• Equipment Type: Abrasive Blasting Equipment

Fits PK Lindsay Models:

• Model 300LA
• Model 600LA

Includes:

Exploded Diagram Item #8

Refer to the exploded parts diagram below to identify the component included with this listing.

Applications:

• PK Lindsay abrasive blast pots
• Pressure sandblasting equipment
• Large mixing valve assemblies
• Commercial abrasive blasting systems
• Industrial surface preparation equipment

Features:

• PK Lindsay 100-084 large mixing valve spindle
• Identified as #8 in the exploded parts diagram
• Fits Models 300LA & 600LA
• Key component of the abrasive metering mechanism
• Works with the spindle arm and related internal valve components
• Ideal for repairing or rebuilding an existing large mixing valve
• Helps restore smooth and consistent abrasive adjustment
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The 100-084 Spindle is part of the adjustment and abrasive metering mechanism inside the PK Lindsay large mixing valve. Movement of the spindle changes the position of the internal valve components, allowing the operator to regulate the amount of abrasive media entering the compressed air stream.

Because the spindle moves during normal valve adjustment and operates in an abrasive environment, its surfaces can gradually wear. Corrosion, abrasive contamination, or mechanical damage can also interfere with smooth spindle movement.

A worn or damaged spindle may make the mixing valve difficult to adjust or prevent it from maintaining a consistent abrasive setting.

Common Signs the Spindle May Need Replacement:

• Mixing valve is difficult to adjust
• Abrasive flow cannot be controlled consistently
• Spindle is visibly worn or scored
• Spindle is bent or damaged
• Excessive play in the adjustment mechanism
• Corrosion interferes with spindle movement
• Performing a complete large mixing valve rebuild

Also Included in the 7-36A Rebuild Kit

The 100-084 Spindle – Diagram Item #8 is also included in the PK Lindsay 7-36A Large Mixing Valve Rebuild Kit.

If the spindle and several other internal components are worn, the complete 7-36A rebuild kit may be more economical than purchasing the parts individually.

Finding Parts for Older PK Lindsay Equipment

PK Lindsay blast machines may no longer be manufactured, but many 300LA and 600LA machines remain in service. Individual mixing valve components can be difficult to identify and locate when you're working from an older exploded parts diagram.

That's why we include the original PK Lindsay part number and exploded diagram item number whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay 100-084 Large Mixing Valve Spindle – Diagram Item #8 only.

Other components shown in the exploded parts diagram are sold separately unless specifically stated otherwise.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
