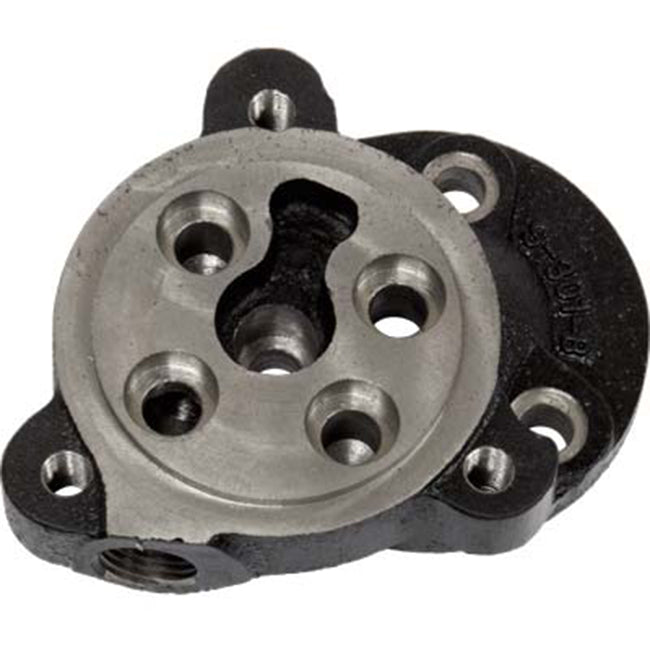

PK Lindsay 100-010 Medium Mixing Valve Body – Diagram #2 – Models 200E & 300E

Keep your older PK Lindsay abrasive blasting equipment in service with the 100-010 Medium Mixing Valve Body. This valve body is the main housing component of the medium mixing valve assembly used on PK Lindsay Models 200E and 300E.

The 100-010 is identified as Item #2 in the exploded parts diagram, making it easy to verify the correct component before ordering.

Part Information:

• Part Number: 100-010
• Product: Medium Mixing Valve Body
• Diagram Item: #2
• Application: PK Lindsay Medium Mixing Valve
• Equipment Type: Abrasive Blasting Equipment

Fits PK Lindsay Models:

• Model 200E
• Model 300E

Includes:

Exploded Diagram Item #2

Refer to the exploded parts diagram below to identify the component included with this listing.

Applications:

• PK Lindsay abrasive blast pots
• Pressure sandblasting equipment
• Medium mixing valve assemblies
• Commercial abrasive blasting systems
• Industrial surface preparation equipment

Features:

• PK Lindsay 100-010 medium mixing valve body
• Identified as #2 in the exploded parts diagram
• Fits Models 200E & 300E
• Main housing component of the medium mixing valve assembly
• Ideal for repairing or rebuilding an existing mixing valve
• Allows serviceable internal components to be reused
• Replaces a worn, damaged, or excessively eroded valve body
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The 100-010 Valve Body forms the main housing of the PK Lindsay medium mixing valve assembly. It contains and supports the internal components responsible for regulating the amount of abrasive media entering the compressed air stream.

Because abrasive media continually passes through the mixing valve during operation, the valve body can eventually suffer from internal erosion and wear. Years of service, corrosion, or physical damage can also make the original body unsuitable for rebuilding.

If the remaining mixing valve components are still serviceable, replacing the body can be a cost-effective alternative to replacing the complete valve assembly.

Common Signs the Mixing Valve Body May Need Replacement:

• Visible internal erosion or excessive wear
• Cracks or physical damage
• Air or abrasive leakage
• Damaged threads or mounting points
• Internal components no longer fit correctly
• Valve cannot be successfully rebuilt because of body wear

Repair Your Existing Mixing Valve

The 100-010 Medium Mixing Valve Body allows you to reuse serviceable components from your existing valve rather than replacing the entire assembly.

For a more extensive rebuild, individual internal components and the 6-36A Medium Mixing Valve Rebuild Kit are also available.

Finding Parts for Older PK Lindsay Equipment

PK Lindsay blast machines may no longer be manufactured, but many 200E and 300E machines remain in service. Individual mixing valve components can be difficult to identify and locate when you're working from an older exploded parts diagram.

That's why we include the original PK Lindsay part number and exploded diagram item number whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay 100-010 Medium Mixing Valve Body – Diagram Item #2 only.

Internal components, gaskets, cover, mounting hardware, and other items shown in the exploded parts diagram are sold separately unless specifically stated otherwise.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
