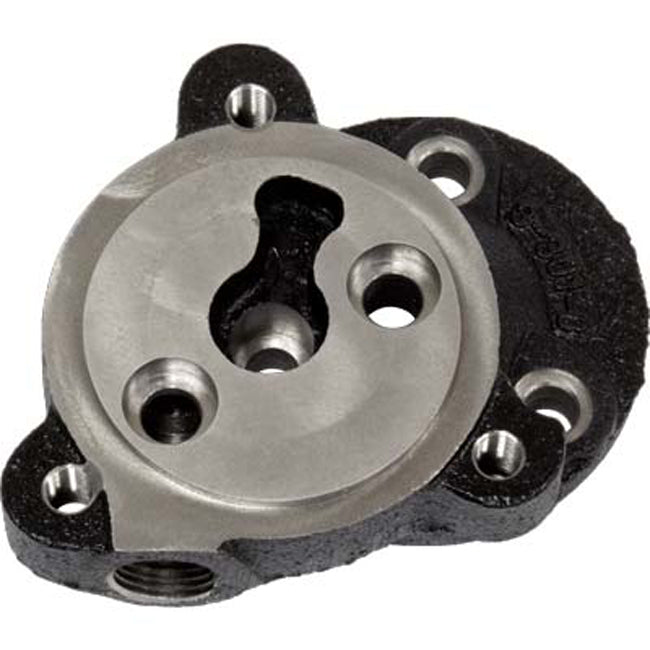

PK Lindsay 100-009 Small Mixing Valve Body – Diagram #2 – Models 15, 25, 35 & 100

Keep your older PK Lindsay abrasive blasting equipment in service with the 100-009 Small Mixing Valve Body. This valve body is used in the small mixing valve assembly found on PK Lindsay Models 15, 25, 35, and 100.

The 100-009 is identified as Item #2 in the exploded parts diagram, making it easy to verify the correct component before ordering.

Part Information:

• Part Number: 100-009

• Product: Small Mixing Valve Body

• Diagram Item: #2

• Application: PK Lindsay Small Mixing Valve

• Equipment Type: Abrasive Blasting Equipment

Fits PK Lindsay Models:

• Model 15

• Model 25

• Model 35

• Model 100

Includes:

Exploded Diagram Item #2

Refer to the exploded parts diagram below to identify the component included with this listing.

Applications:

• PK Lindsay abrasive blast pots

• Sandblasting equipment

• Pressure blasting machines

• Small mixing valve assemblies

• Commercial and industrial abrasive blasting equipment

Features:

• PK Lindsay 100-009 small mixing valve body

• Identified as #2 in the exploded parts diagram

• Fits Models 15, 25, 35 & 100

• Main body component of the small mixing valve assembly

• Ideal for rebuilding a damaged or excessively worn mixing valve

• Allows serviceable internal components to be reused when appropriate

• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The 100-009 valve body forms the main housing of the PK Lindsay small mixing valve assembly. The mixing valve regulates the amount of abrasive media entering the compressed air stream at the bottom of the blast pot.

Years of abrasive passing through the valve can eventually cause wear or erosion to the body. If the internal repair components are still serviceable but the valve body itself is damaged or excessively worn, replacing the body can be a cost-effective alternative to purchasing a complete mixing valve.

Common Signs the Valve Body May Need Replacement:

• Visible erosion or wear inside the valve body

• Cracks or physical damage

• Abrasive or air leakage

• Damaged threads

• Internal components no longer fit or seal correctly

• Mixing valve cannot be successfully rebuilt because of body wear

Finding Parts for Older PK Lindsay Equipment

PK Lindsay blast machines may no longer be manufactured, but many are still in service. Finding individual components can be difficult, particularly when you're working from an older exploded parts diagram.

That's why we include the original part number and diagram item number whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay 100-009 Small Mixing Valve Body – Diagram Item #2 only. Internal mixing valve components and other items shown in the exploded diagram are sold separately unless specifically stated otherwise.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
