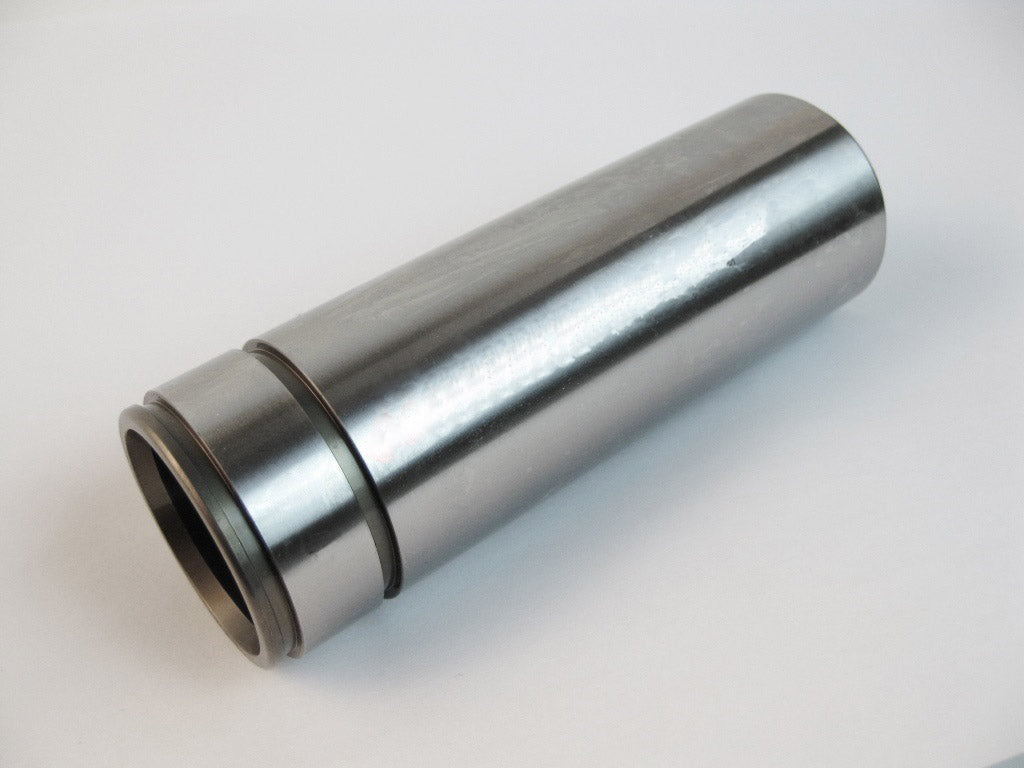

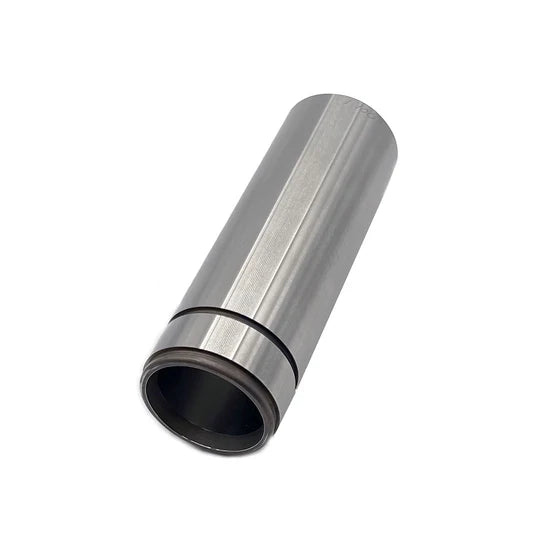

Replaces Graco 240525 Cylinder Sleeve – GMAX 5900, Ultra Max II 1595 & Mark V

Restore your Graco airless paint sprayer with this aftermarket cylinder sleeve that replaces Graco Part #240525 (240-525).

The cylinder sleeve is a critical component of the fluid section and provides the precision surface in which the piston and packings operate. A worn, scored, or damaged sleeve can cause premature packing wear, fluid leakage, pressure loss, and poor pump performance.

This quality aftermarket cylinder sleeve is designed to provide dependable performance and fit while offering an economical alternative to the OEM component.

Part Information:

• Replaces Graco Part Number: 240525 / 240-525
• Product: Fluid Pump Cylinder Sleeve
• Type: Aftermarket
• Application: Airless Paint Sprayer Fluid Section / Displacement Pump
• Brand Compatibility: Graco

Fits Graco Airless Paint Sprayers:

This cylinder sleeve is used on numerous Graco professional airless sprayers, including:

• GMAX 5900
• GMAX II 5900
• GMAX 5900 HD
• GMAX 10000
• GM 3012
• GH 130 / 130 GH
• Ultimate MX 1595
• Ultimate MX II 1095
• Ultimate MX II 1595
• Ultra Max 1595
• Ultra Max II 1095
• Ultra Max II 1595
• Mark V
• TexSpray Mark V
• LineLazer II 5900
• LineLazer III 5900
• LineLazer IV 5900

Features:

• Replaces Graco 240525 / 240-525
• Precision fluid pump cylinder sleeve
• Quality aftermarket component
• Designed for professional airless paint spraying equipment
• Fits numerous Graco GMAX, Ultra Max, Ultimate MX, LineLazer and TexSpray models
• Ideal for fluid pump rebuilding and repair
• Economical alternative to replacing a complete displacement pump
• Helps keep older Graco professional spraying equipment in service

What the Cylinder Sleeve Does

The cylinder sleeve forms the working surface surrounding the piston and packings inside the fluid section of the airless pump.

During operation, the piston continuously travels through the packings while the pump develops thousands of PSI of fluid pressure. Over time, abrasive coatings, contamination, normal wear, or damaged packings can score or wear the inside surface of the cylinder sleeve.

Installing new packings into a badly worn or scored sleeve can result in premature packing failure. When rebuilding a fluid section, the sleeve should always be carefully inspected and replaced when necessary.

Common Signs of a Worn Cylinder Sleeve:

• Fluid leaking past the packings
• Difficulty maintaining spray pressure
• Excessive packing wear
• Scoring or grooves inside the cylinder
• Sprayer repeatedly requiring packing adjustment
• Uneven or reduced pump output
• New packings failing prematurely
• Visible corrosion or damage to the sleeve

Rebuilding Your Graco Fluid Pump

When rebuilding an airless displacement pump, inspect the piston rod, cylinder sleeve, inlet and outlet balls and seats, packings, glands, and seals for wear.

Replacing worn hard parts along with the packings can provide a much more reliable repair than installing new packings against damaged components.

Finding Parts for Older Graco Equipment

Many older Graco professional airless sprayers remain in daily service even though some models have been discontinued or superseded.

That's why we include the original Graco part number and compatible sprayer models whenever possible—making it easier to identify the correct repair parts for older equipment.

Important:

This listing is for one aftermarket cylinder sleeve that replaces Graco Part #240525 / 240-525.

This is an aftermarket component and is not manufactured by Graco.

Because Graco has produced different versions and series of many sprayer models over the years, always verify your original part number before ordering rather than relying solely on the sprayer model number.

Need help identifying parts for your Graco airless sprayer? Contact us with your sprayer model, series, and part number—we'll help you find the correct parts to keep your equipment working.
