Replaces Graco 240518 Piston Rod – Ultra Max 695, 795, 1095 & GMAX 3900

Replaces Graco 240518 Piston Rod – Ultra Max 695, 795, 1095 & GMAX 3900

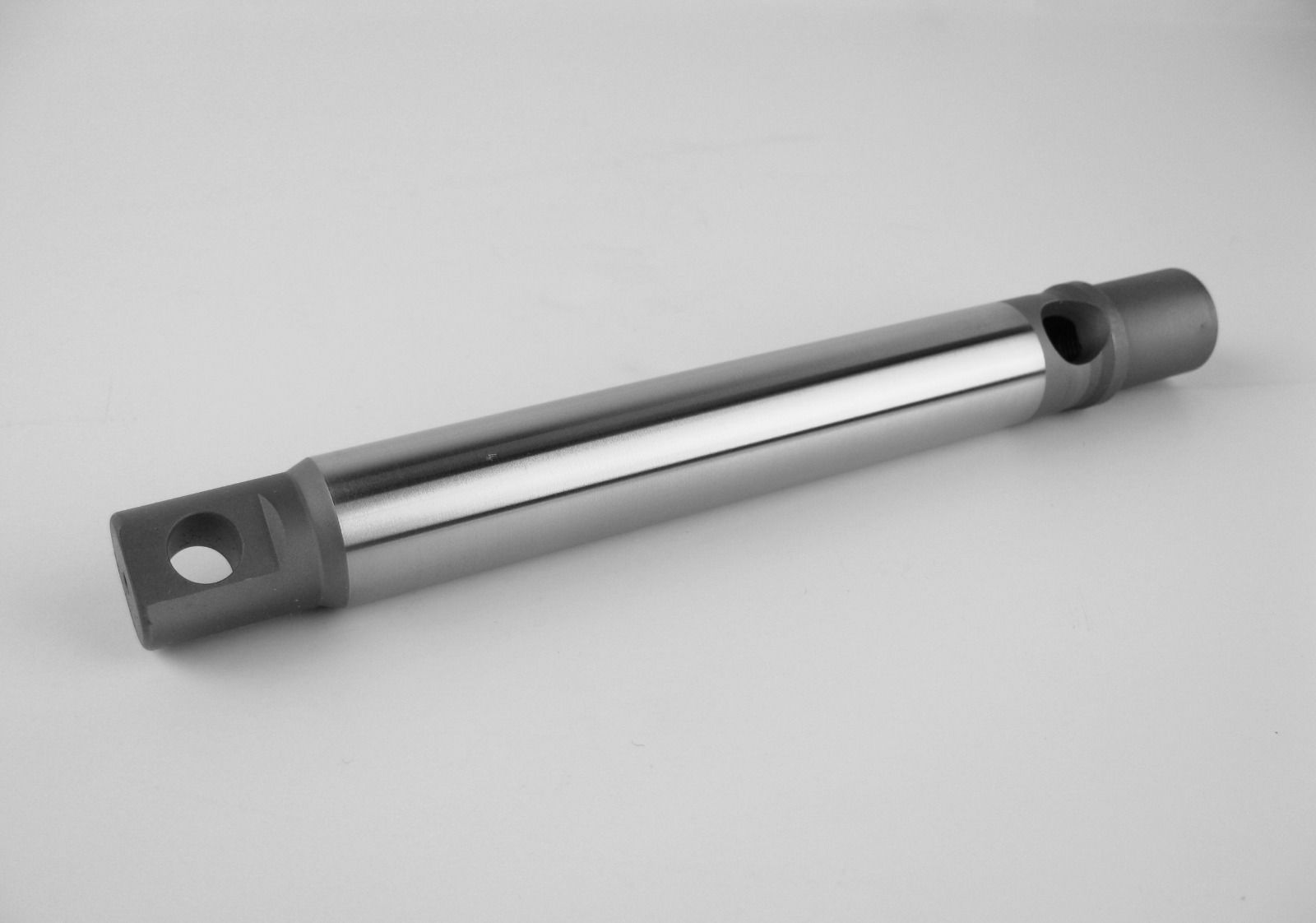

Restore the fluid section on your Graco airless paint sprayer with this aftermarket piston rod that replaces Graco Part #240518 / 240-518.

The piston rod is one of the primary working surfaces inside the displacement pump. A worn, scored, or damaged rod can cause packing leakage, premature packing failure, loss of pressure, and poor pump performance.

This quality aftermarket piston rod fits a wide range of Graco, ASM and AllPro professional airless sprayers.

Part Information:

• Replaces Graco Part Number: 240518 / 240-518
• Product: Displacement Pump Piston Rod
• Type: Aftermarket
• Application: Airless Paint Sprayer Fluid Section / Displacement Pump
• Brand Compatibility: Graco / ASM / AllPro

Fits Graco Airless Paint Sprayers:

• Ultra Max 795
• Ultra Max 1095
• Ultra Max II 695
• Ultra Max II 795
• Ultimate MX 795
• Ultimate MX 1095
• Ultimate MX II 695
• Ultimate MX II 795
• EuroPro 795
• EuroPro 1095
• GMAX 3900
• GMAX II 3900
• GMx 3900
• LineLazer II 3900
• LineLazer III 3900
• LineLazer IV 3900
• RentalPro 360G

Fits ASM / AllPro Airless Sprayers:

• 2700 H Plus
• 2700 Zip-Spray Plus
• 3100 Zip-Spray Plus
• 3400 G Zip-Spray
• AllPro Mach 8600 Plus
• AllPro Mach 11,000 Plus

The same machines may be listed with the model names in a different order—for example, 795 Ultra Max vs. Ultra Max 795. We've consolidated those duplicate entries to make the compatibility list easier to use.

It may fit additional displacement pumps that specify Graco 240518. Always verify the original piston rod part number before ordering.

Features:

• Replaces Graco 240518 / 240-518
• Displacement pump piston rod
• Precision working surface for the pump packings
• Fits numerous Graco Ultra Max, Ultimate MX, GMAX and LineLazer sprayers
• Fits compatible ASM and AllPro equipment
• Quality aftermarket component
• Ideal for fluid pump rebuilding and repair
• Helps prevent premature failure of new pump packings
• Economical alternative to replacing a complete displacement pump

What the Piston Rod Does

The piston rod moves continuously through the pump packings as the displacement pump cycles. During each stroke, the rod and packings work together to seal the fluid section while the pump develops the high pressures required for airless spraying.

Because the rod is constantly moving against the packings, its surface condition is extremely important.

Over time, abrasive coatings, contamination, dried material, corrosion, and normal wear can score, pit, or wear the piston rod. Once that happens, the damaged surface can quickly destroy a new set of packings.

Common Signs of a Worn Piston Rod:

• Fluid leaking from the upper packings
• Visible scoring or grooves on the rod
• Pitting or corrosion on the rod surface
• New packings begin leaking prematurely
• Difficulty maintaining spray pressure
• Excessive packing adjustment
• Uneven pump performance
• Fluid section requires frequent rebuilding

Rebuilding Your Graco Fluid Pump

If you're already rebuilding the displacement pump, take a close look at the piston rod before installing new packings.

Running new packings against a badly scored or pitted rod can shorten their life considerably. A rod that feels rough when you drag a fingernail across the working surface deserves particular attention.

While the pump is apart, inspect the:

• Piston rod
• Cylinder or sleeve
• Upper and lower packings
• Packing glands
• Inlet and outlet balls
• Ball seats
• O-rings and seals

Replacing worn hard parts along with the packings can make the difference between a successful rebuild and having to tear the pump apart again after a short period of use.

Finding Parts for Older Graco & ASM Equipment

Many of these professional airless sprayers have been in service for years, and the same basic equipment was sometimes marketed under Graco, ASM, AllPro, and other model names.

That can make identifying parts from an older machine confusing, particularly when model names appear differently in older manuals and parts catalogs.

That's why we include the original Graco part number and compatible sprayer models whenever possible—so you can identify the correct repair parts before ordering.

Important:

This listing is for one aftermarket piston rod that replaces Graco Part #240518 / 240-518.

This is an aftermarket component and is not manufactured by Graco.

Because different generations and series of similar sprayers can use different displacement pump components, always verify the original 240518 part number for the pump currently installed on your machine before ordering.

Need help identifying pump parts for your Graco, ASM, or AllPro airless sprayer? Contact us with your sprayer model, series, or original part number—we'll help you find the correct parts to keep your equipment working.
