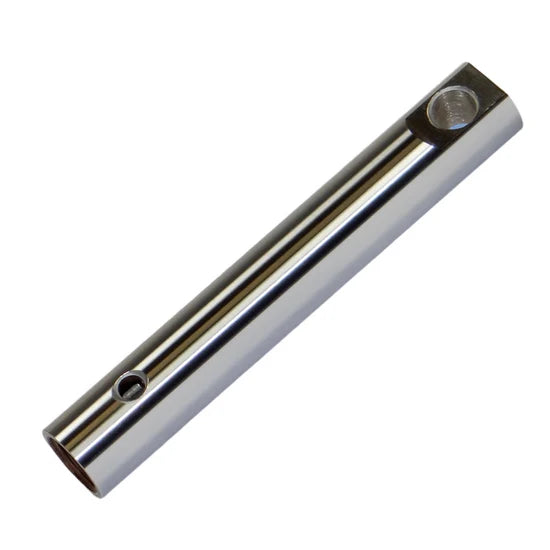

Replaces Graco 235709 Piston Rod – Ultra 600, 395ST, 450ST, 490ST & 495ST

Replaces Graco 235709 Piston Rod – Ultra 600, 395ST, 450ST, 490ST & 495ST

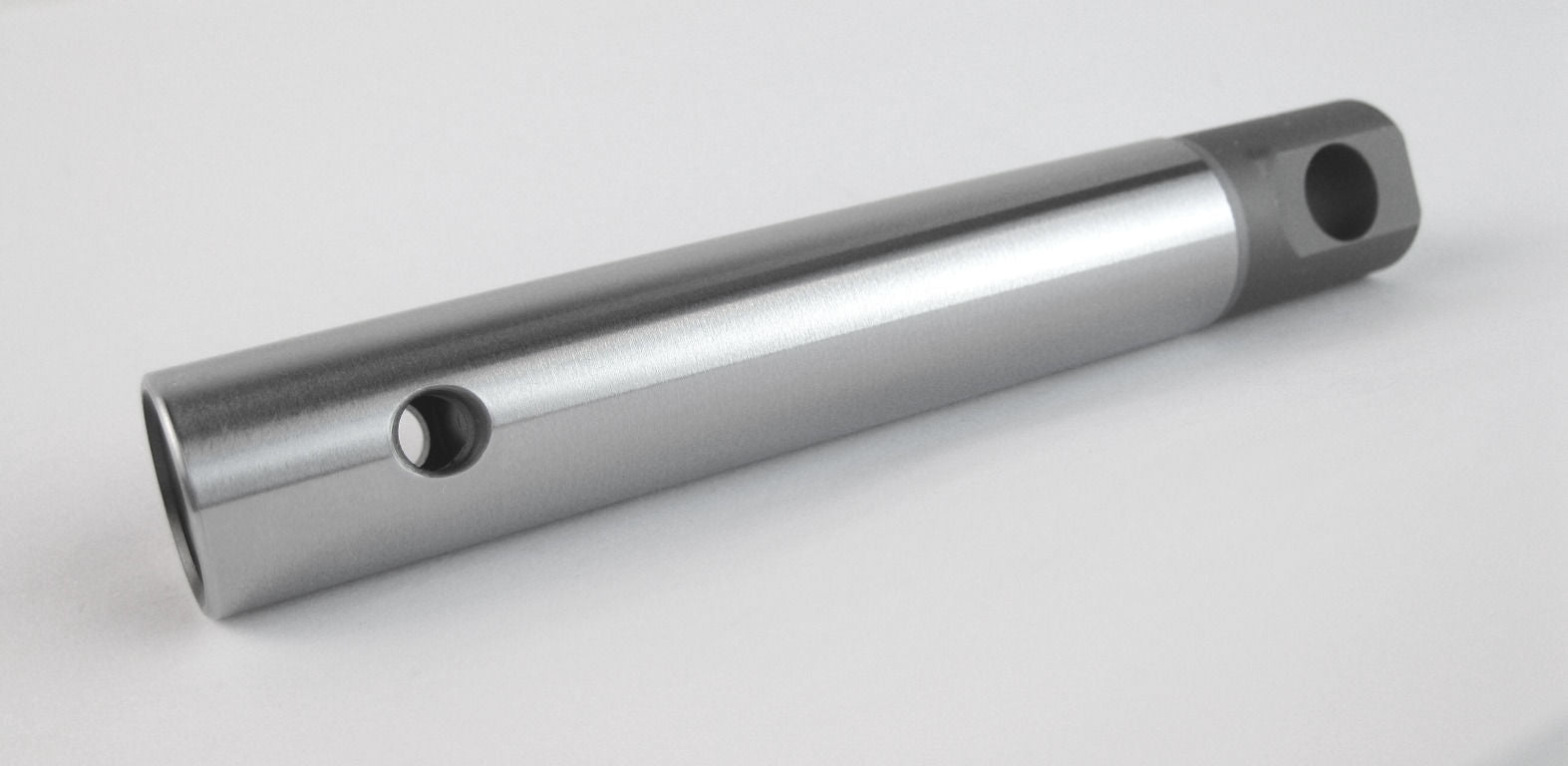

Restore the fluid section on your Graco airless paint sprayer with this aftermarket piston rod that replaces Graco Part #235709 / 235-709.

The piston rod is a critical working component inside the displacement pump. A worn, scored, pitted, or damaged rod can cause packing leakage, premature packing failure, pressure loss, and poor pump performance.

This quality aftermarket piston rod fits a large family of older Graco professional airless sprayers, including the popular Ultra 600, Ultimate 600, ST-series, Nova, EuroPro, Duron Performance, GM 3000 and LineLazer 3000.

Part Information:

• Replaces Graco Part Number: 235709 / 235-709
• Product: Displacement Pump Piston Rod
• Type: Aftermarket
• Application: Airless Paint Sprayer Fluid Section / Displacement Pump
• Brand Compatibility: Graco

Fits Graco Airless Paint Sprayers:

• Easy 290
• ST 390
• STS 390
• ST 395
• ST 450
• ST 455
• ST 490
• ST 495
• ST 590
• ST 595
• EuroPro 395
• EuroPro 495
• Duron Performance 395
• Duron Performance 495
• Ultra 600
• Ultra 600 Plus
• Ultimate 600
• Ultimate 600 Plus
• Nova Plus
• Nova SP
• Nova SPx
• Super Nova SP
• Super Nova SPx
• GM 3000
• LineLazer 3000

It may fit additional Graco displacement pumps that specify Part #235709. Always verify the original piston rod part number before ordering.

Features:

• Replaces Graco 235709 / 235-709
• Displacement pump piston rod
• Precision working surface for the fluid pump packings
• Fits numerous older Graco ST, Ultra, Ultimate, Nova and EuroPro sprayers
• Fits Graco GM 3000 and LineLazer 3000
• Quality aftermarket component
• Ideal for fluid pump rebuilding and repair
• Helps prevent premature failure of new pump packings
• Economical alternative to replacing the complete displacement pump
• Helps keep older professional Graco equipment in service

What the Piston Rod Does

The piston rod continuously travels through the pump packings as the displacement pump cycles. The rod and packings work together to create the seal necessary for the pump to develop the high fluid pressures required for airless spraying.

Because the packings ride directly against the piston rod, the condition of the rod's working surface is extremely important.

Normal use, abrasive coatings, contamination, dried material, corrosion, or operating the pump with worn packings can eventually cause the piston rod to become scored, grooved, pitted, or worn.

Once the rod surface is damaged, simply installing new packings may not provide a lasting repair.

Common Signs of a Worn Piston Rod:

• Fluid leaking from the upper packings
• Visible scoring or grooves on the rod
• Pitting or corrosion
• New packings begin leaking prematurely
• Difficulty maintaining spray pressure
• Excessive packing adjustment
• Uneven pump performance
• Frequent fluid section rebuilds

Rebuilding Your Graco Fluid Pump

If you're rebuilding the displacement pump, inspect the piston rod carefully before installing new packings.

One simple check is to run your fingernail across the working surface of the rod. If you can clearly feel scoring, grooves, pitting, or other damage, new packings will have to run across those same imperfections every time the pump cycles.

While the pump is apart, inspect the:

• Piston rod
• Cylinder or sleeve
• Upper and lower packings
• Packing glands
• Inlet and outlet balls
• Ball seats
• O-rings and seals

Replacing worn hard parts along with the packings can make the difference between a successful pump rebuild and having to tear the fluid section apart again after a short period of use.

Keeping Older Graco Sprayers Working

This is exactly the type of part that can keep an older professional sprayer earning its keep.

Machines such as the Ultra 600, Ultimate 600, ST 395, ST 450, ST 490, ST 495, Nova and GM 3000 may be older designs, but many remain perfectly serviceable when the fluid section can still be rebuilt.

Graco also used several different model names and configurations over the years, which can make identifying parts for older machines confusing.

That's why we include the original Graco part number and compatible sprayer models whenever possible—so you can identify the correct repair parts before ordering.

Important:

This listing is for one aftermarket piston rod that replaces Graco Part #235709 / 235-709.

This is an aftermarket component and is not manufactured by Graco.

Because different generations and series of similar Graco sprayers may use different displacement pump components, always verify the original 235709 part number for the pump currently installed on your machine before ordering.

Need help identifying pump parts for an older Graco airless sprayer? Contact us with your sprayer model, series, or original part number—we'll help you find the correct parts to keep your equipment working.
