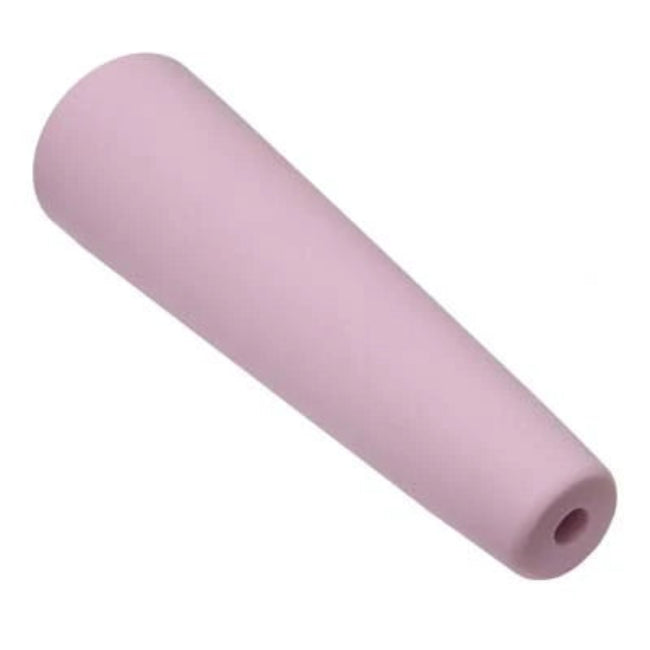

1/8" Ceramic Sandblast Nozzle – Long Tapered Cone, Straight Bore, 3-3/4" Long

Heavy-duty ceramic abrasive blasting nozzle featuring a long tapered cone design with a 1/8" straight bore and an overall length of 3-3/4 inches.

This nozzle cross-references several common abrasive blasting nozzle numbers and is compatible with the Northern Tool / ALC 155519 Deadman Valve. The 1/8" bore is especially useful for smaller compressors and applications where lower air consumption is required. Northern Tool lists the corresponding 1/8" nozzle at approximately 15 CFM at 80 PSI.

Specifications:

• Product: Ceramic Sandblast Nozzle
• Material: Ceramic
• Bore: 1/8"
• Bore Style: Straight Bore
• Shape: Long Tapered Cone

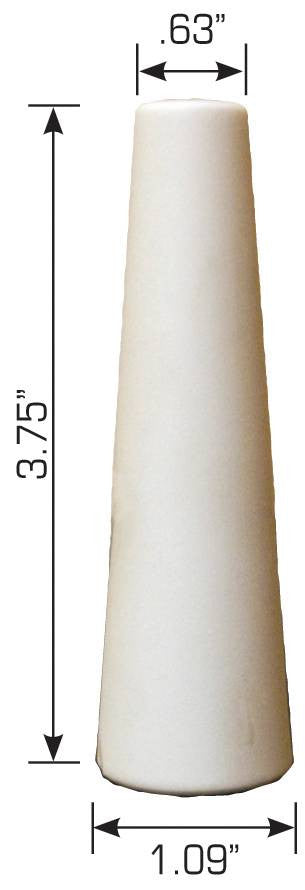

• Overall Length: 3-3/4"
• Approximate Air Requirement: 15 CFM @ 80 PSI
• Application: Pressure Abrasive Blasting Equipment

Cross References:

• C1-2
• CN3-2
• 502352
• ALC 40068
• ALC Kit 40293
• Northern Tool / ALC 155516
• PK Lindsay 100-102
• Empire 502352 / 80802
• Schmidt / Axxiom 5002-004

Fits:

• Northern Tool / ALC 155519 Deadman Valve
• Compatible pressure blast equipment using the same long tapered ceramic nozzle configuration

Features:

• Durable ceramic construction
• 1/8" straight bore
• Long tapered cone design
• 3-3/4" overall length
• Lower air consumption than larger bore blast nozzles
• Cross-references multiple common sandblast nozzle part numbers
• Economical replacement for worn ceramic nozzles
• Useful for maintaining older abrasive blasting equipment

Choosing the Correct Nozzle Size

Nozzle bore size has a major effect on the amount of compressed air required to operate a pressure blaster.

The 1/8" bore requires substantially less air than larger nozzles, making it a good choice when compressor capacity is limited. Northern Tool specifies approximately 15 CFM at 80 PSI for its corresponding 1/8" nozzle.

A Normal Wear Item

Ceramic blast nozzles gradually wear as abrasive passes through the bore. As the opening becomes larger, the nozzle consumes more compressed air and can eventually cause the compressor to struggle to maintain blasting pressure.

Regularly inspecting the nozzle bore and replacing worn nozzles helps maintain consistent blasting performance and air consumption.

Important:

This listing is for one 1/8" bore, 3-3/4" long ceramic sandblast nozzle unless otherwise specified.

References to ALC Kit 40293 and other part numbers are provided for identification and cross-reference purposes. The complete ALC kit or other components are not included unless specifically stated.

Need a different bore size? Reach out with your nozzle number, blast machine model, or existing nozzle dimensions—we'll help you get the right nozzle for your equipment.
