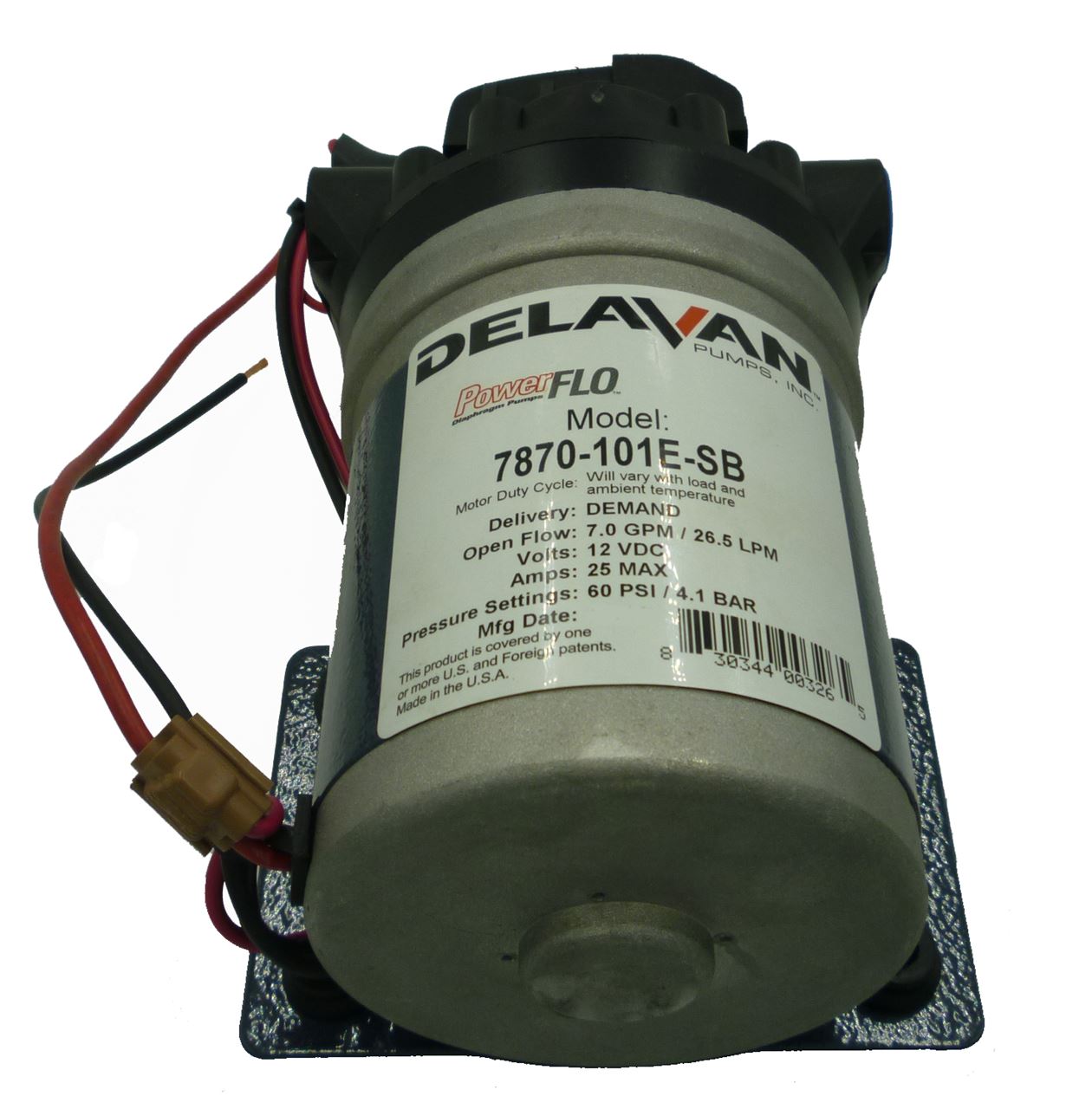

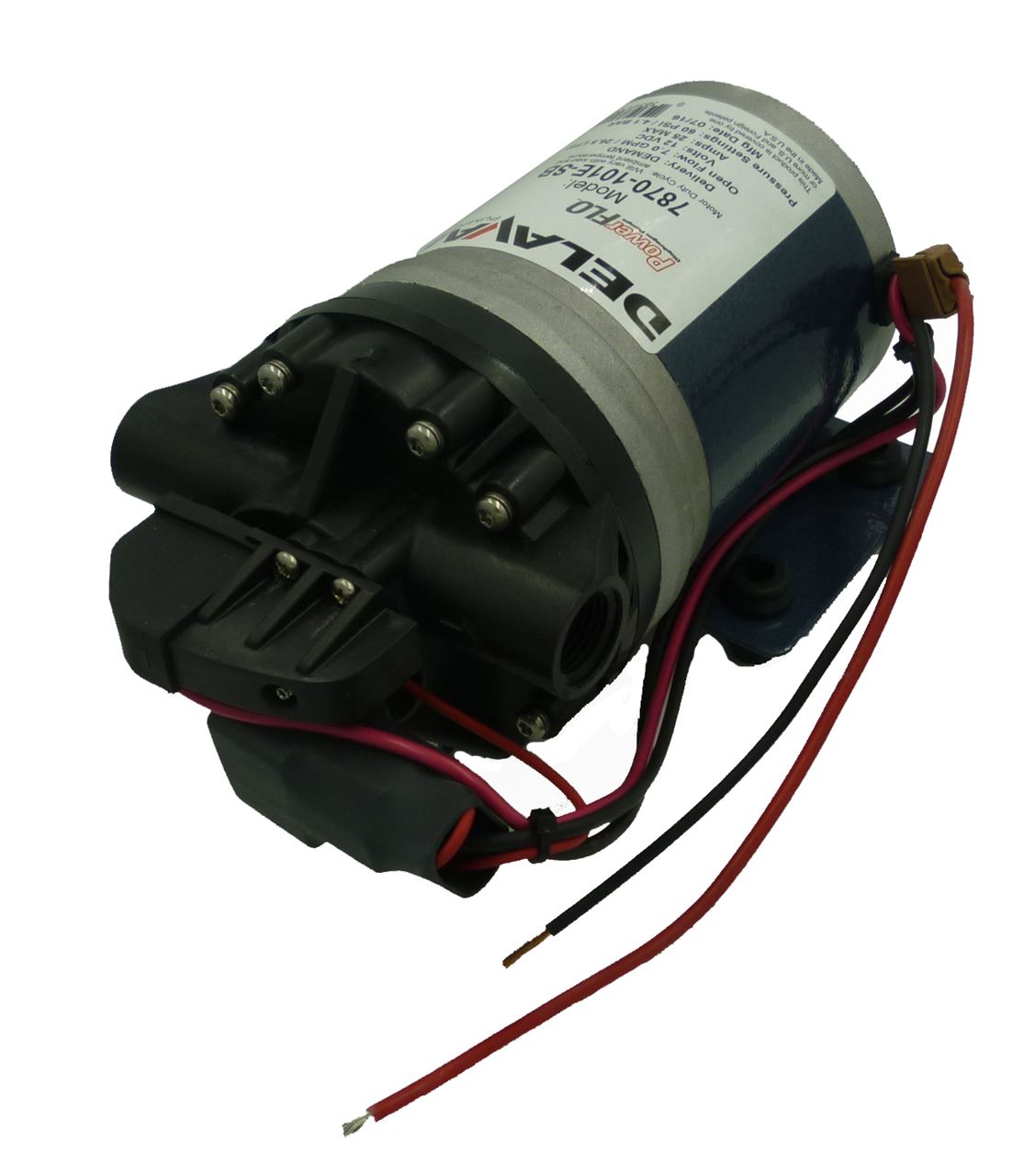

Original Style Delavan FB2 Fat Boy Diaphragm Roof Wash Pump 12V, 60PSI, 7.0GPM, DEM

Delavan 7870-101E-SB PowerFLO™ Fat Boy 2 Series 7.0 GPM 60 PSI Diaphragm Pump with 1/2” FNPT Ports. Demand Switch – Operates only when liquid flow is required.

Features:
• The Fat Boy 2 pumps are heavy duty 12V, 7 GPM pumps with Santoprene diaphragms and Santoprene valves
• These Fat Boy2 5 chamber pumps are smooth running, and can run dry, and self-prime
• The pumps feature popular threaded NPTF ports, along with a heavy duty demand system to turn the pump off when not in use, saving pump life and saving energy
• The Fat Boy 2 pumps are known for one of the highest flow rates in the 12V market
• The Fat Boy 2 pumps are used in difficult applications such as roof cleaning, and de-icing
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase

Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 12 AWG, 12” long
• Max Amps (60 PSI): 17
• Duty Cycle: See Heat Rise graph

Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene Glass Filled
• Valves: Santoprene
• Diaphragm: Santoprene
• Fasteners: Stainless Steel

Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 7.0 GPM
• Pressure Shut-Off: 60 PSI
• Inlet/Outlet Ports: 1/2” FNPT
• Packaging: Small box
• Weight: 9.75 lbs
