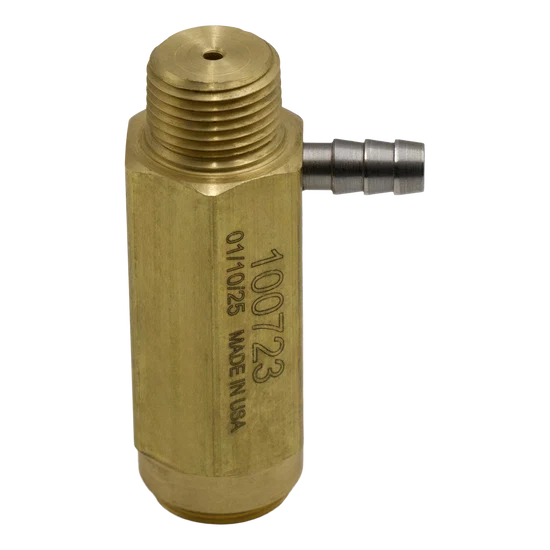

General Pump 100723 Safety Relief Valve – 3/8" MPT with Hose Barb Outlet, 1000–6000 PSI

General Pump 100723 Safety Relief Valve – 3/8" MPT with Hose Barb Outlet, 1000–6000 PSI

Protect your pressure washer pump and high-pressure plumbing from excessive pressure with the General Pump 100723 Adjustable Safety Relief Valve. This heavy-duty valve features a 3/8" Male NPT inlet and hose barb outlet, allowing relieved water to be conveniently routed away from the machine or back to a suitable location.

With a wide 1000 to 6000 PSI adjustment range, capacity up to 6 GPM, and a maximum temperature rating of 195°F, this valve provides important secondary pressure protection for commercial hot and cold water pressure washer systems.

Specifications:

• Brand: General Pump

• Part Number: 100723

• Product: Adjustable Safety Relief Valve

• Inlet: 3/8" Male NPT

• Outlet: Hose Barb

• Adjustment Range: 1000–6000 PSI

• Maximum Pressure: 6000 PSI

• Maximum Flow: 6 GPM

• Maximum Temperature: 195°F

• Adjustable: Yes

• Made in USA: Yes

Applications:

• Hot water pressure washers

• Cold water pressure washers

• Commercial pressure washing equipment

• High-pressure pump systems

• Industrial cleaning equipment

• Pressure washer safety plumbing

Features:

• Wide adjustable pressure range from 1000 to 6000 PSI

• Heavy-duty 6000 PSI maximum pressure rating

• Handles flow rates up to 6 GPM

• 3/8" Male NPT inlet

• Hose barb outlet for convenient discharge hose connection

• Rated for temperatures up to 195°F

• Helps protect pumps, hoses, fittings, and other high-pressure components

• Made in the USA

• Genuine General Pump component

Hose Barb Outlet Advantage:

Unlike a standard relief valve with an open discharge, the hose barb outlet allows a hose to be attached to the valve. This makes it easier to direct discharged water to a safe location rather than allowing it to spray or drain directly around the pressure washer.

What it does:

The safety relief valve provides backup protection against excessive pressure within the pressure washer system. If system pressure rises beyond the valve's preset adjustment, the valve opens and diverts water through the hose barb outlet to relieve pressure.

Safety Relief Valve vs. Unloader:

A safety relief valve should not be used as a replacement for the pressure washer's unloader valve.

The unloader controls normal system pressure and bypass operation. The safety relief valve serves as a secondary safety device if system pressure rises beyond the predetermined safe operating limit.

Why it matters:

Excessive system pressure can contribute to:

• Burst high-pressure hoses

• Damaged fittings and valves

• Pump damage

• Seal and packing failure

• Equipment downtime

• Unsafe operating conditions

The General Pump 100723 Safety Relief Valve with Hose Barb Outlet is an excellent choice for compatible systems requiring a 3/8" MPT connection, up to 6 GPM, and an adjustable 1000–6000 PSI pressure range.

Not sure which General Pump safety relief valve is right for your pressure washer? Reach out—we'll help you get the correct part the first time.
