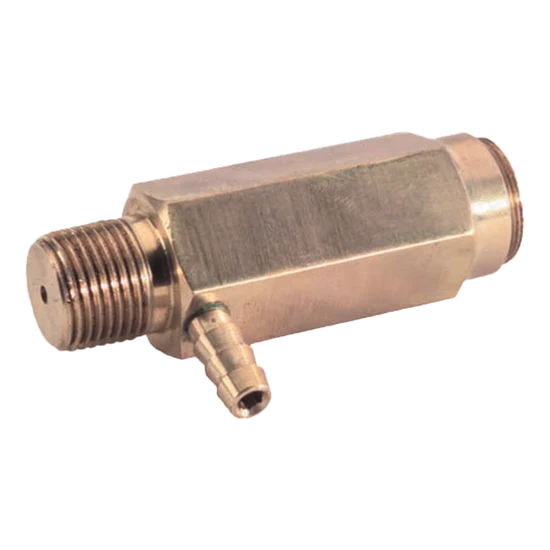

General Pump 100722 Safety Relief Valve – 1/2" MPT with Hose Barb Outlet, 1000–6000 PSI

General Pump 100722 Safety Relief Valve – 1/2" MPT with Hose Barb Outlet, 1000–6000 PSI

Protect your pressure washer pump and high-pressure plumbing from excessive pressure with the General Pump 100722 Adjustable Safety Relief Valve. This heavy-duty valve features a 1/2" Male NPT inlet and hose barb outlet, making it easy to attach a discharge hose and route relieved water to a safe location.

With a wide 1000 to 6000 PSI adjustment range, capacity up to 6 GPM, and a maximum temperature rating of 195°F, this valve provides important secondary pressure protection for commercial hot and cold water pressure washer systems.

Specifications:

• Brand: General Pump

• Part Number: 100722

• Product: Adjustable Safety Relief Valve

• Inlet: 1/2" Male NPT

• Outlet: Hose Barb

• Adjustment Range: 1000–6000 PSI

• Maximum Pressure: 6000 PSI

• Maximum Flow: 6 GPM

• Maximum Temperature: 195°F

• Adjustable: Yes

• Made in USA: Yes

Applications:

• Hot water pressure washers

• Cold water pressure washers

• Commercial pressure washing equipment

• High-pressure pump systems

• Industrial cleaning equipment

• Pressure washer safety plumbing

Features:

• Wide adjustable pressure range from 1000 to 6000 PSI

• Heavy-duty 6000 PSI maximum pressure rating

• Handles flow rates up to 6 GPM

• 1/2" Male NPT inlet

• Hose barb outlet for convenient discharge hose connection

• Rated for temperatures up to 195°F

• Helps protect pumps, hoses, fittings, and other high-pressure components

• Made in the USA

• Genuine General Pump component

Hose Barb Outlet Advantage:

The hose barb outlet allows a discharge hose to be connected directly to the relief valve. This provides better control over discharged water and allows it to be routed away from the operator, electrical components, burner, and other areas where unwanted water could cause problems.

What it does:

The safety relief valve provides backup protection against excessive system pressure. If pressure rises beyond the valve's preset adjustment, the valve opens and diverts water through the hose barb outlet, relieving pressure within the high-pressure system.

Safety Relief Valve vs. Unloader:

A safety relief valve should not be used as a replacement for the pressure washer's unloader valve.

The unloader manages normal operating pressure and bypass operation. The safety relief valve serves as a secondary safety device if system pressure rises beyond the predetermined safe operating limit.

Why it matters:

Excessive system pressure can contribute to:

• Burst high-pressure hoses

• Damaged fittings and valves

• Pump damage

• Seal and packing failure

• Equipment downtime

• Unsafe operating conditions

The General Pump 100722 Safety Relief Valve with Hose Barb Outlet is an excellent choice for compatible pressure washer systems requiring a 1/2" MPT connection, up to 6 GPM, and an adjustable 1000–6000 PSI pressure range.

Not sure whether you need the 3/8" or 1/2" hose barb version? Reach out—we'll help you get the correct General Pump safety relief valve the first time.
