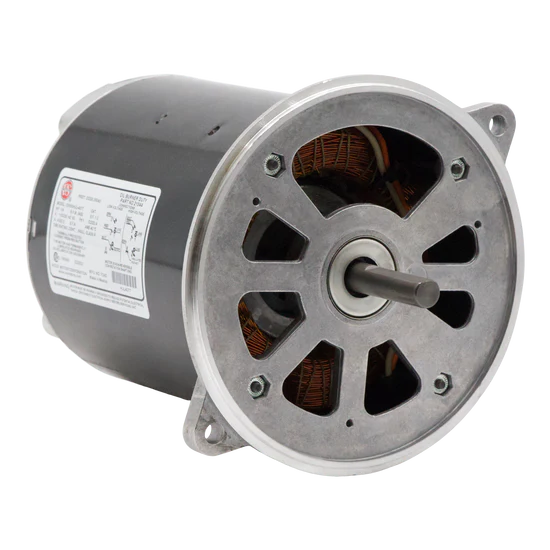

Beckett Burner Motor – 1/4 HP, 3450 RPM, 115/230V (48N Frame, 1/2" Shaft)

Power up your burner system with this heavy-duty Beckett burner motor, designed for reliable performance in hot water pressure washers and commercial burner applications.

If your burner is slow to start, tripping out, or failing to produce consistent heat, a worn or underperforming motor is often the issue. This capacitor start motor provides the extra starting torque needed for dependable ignition and smooth operation.

Specifications:

• 115/230 Volt, 60Hz (Dual Voltage)
• 1/4 HP Motor
• 3,450 RPM
• 4.6 / 2.3 Amp Draw
• 1/2" Shaft
• NEMA 48N Frame

Features:

• Capacitor Start for Strong Starting Torque
• Thermally Protected
• Permanently Lubricated Bearings

Built to handle demanding environments, this motor is a reliable replacement for keeping your burner running efficiently and minimizing costly downtime.

Why it matters:
A weak motor can cause hard starts, poor combustion, or complete burner failure. Upgrading to the correct horsepower and capacitor start design ensures consistent performance and longer service life.

Not sure if this is the right fit for your setup? Reach out—we’ll help you match it up.
