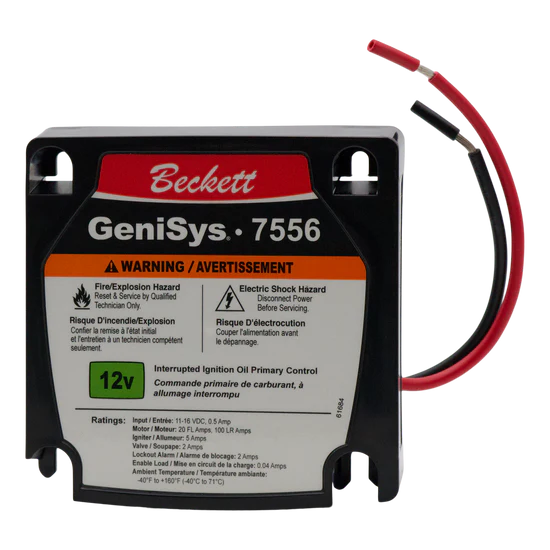

Beckett 7556 GeniSys 12V Primary Control Assembly

Take control of your burner system with the Beckett 7556 GeniSys 12V Primary Control, a critical safety and operation module designed for oil burners in mobile and specialty applications.

This advanced control manages the burner motor, ignitor, and optional solenoid valve while monitoring flame presence using a cad cell sensor. Built for reliability, it ensures safe startup, operation, and shutdown of your burner system.

Key Features:

• 12V DC primary safety control for oil burners
• Controls motor, ignitor, and optional solenoid valve
• Compatible with cad cell flame sensor
• 12V enable input works with mechanical and high limit switches
• 15-second safety lockout on flame failure
• Supports interrupted or intermittent ignition

Applications:

• Hot water pressure washers
• Water heaters
• Crack sealers
• Portable heaters
• Other oil-fired equipment under 5.5 GPH

What it does:
This control acts as the “brain” of your burner system—coordinating ignition, monitoring flame, and shutting the system down if a fault is detected.

Why it matters:
A faulty primary control can cause:

• No ignition
• Random shutdowns
• Unsafe operation
• Burner lockouts

Replacing it ensures safe, reliable burner performance and proper system control.

Built for demanding environments where 12V operation is required, the GeniSys control is a trusted solution for mobile and off-grid burner systems.

Not sure if this is the right control for your setup? Reach out—we’ll help you get it right the first time.
