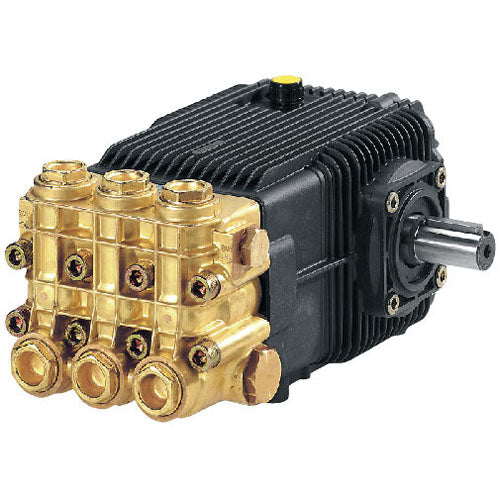

AR Annovi Reverberi XWA9G30N 9 GPM, 3000 PSI 1750 RPM Triplex Plunger Pump

Annovi Reverberi XWA9G30N Triplex Pump

9 GPM Power. 3,000 PSI Pressure. Commercial Built.

When you need high volume with dependable pressure, the AR XWA9G30N delivers. This is a commercial-duty, 24mm solid shaft triplex pump built for rigs that work every day — not sit in the garage.

Producing up to 9 GPM at 3,000 PSI, this pump is ideal for high-flow cleaning applications where rinse speed and production matter.

Performance You Can Count On

• Max Flow: 9 GPM (34 L/Min)
• Max Pressure: 3,000 PSI (200 Bar)
• Max RPM: 1750
• Power Requirement: 18.5 EBHP
• Max Fluid Temp: 140°F
• Pump Type: Commercial Triplex Plunger
• Orientation: Horizontal
• Weight: 34 lbs

If you're running a belt drive or pulley setup at 1750 RPM, this pump is right at home.

Built for Commercial Service

✔ Forged Brass Head – Durable and corrosion-resistant for a wide range of cleaning conditions
✔ Solid 24mm Neutral (N) Shaft – Ready for direct or pulley drive setups
✔ Frictionless Aluminum Connecting Rods – Reduced heat and long service life
✔ Solid Ceramic Pistons – Smooth operation and extended packing life
✔ Oil-Bath Crankcase (32 oz capacity) – Reliable lubrication under load

This is the AR 194 (XWA) Series — known in the industry for durability and smooth operation.

Key Dimensions & Connections

• Shaft: 24mm Solid (Natural / Neutral)
• Bore: 22mm
• Stroke: 19.8mm
• Inlet: 3/4" F
• Outlet: 3/8" F
• Oil Capacity: 32 oz

Make sure your drive system and plumbing match your build — and if you’re not sure, I’m happy to help you confirm before you order.

Ideal For

• High-volume wash rigs
• Agricultural and equipment cleaning
• Fleet washing
• Industrial cleaning setups
• Belt-driven pressure washer systems

Bottom Line

If you need serious water volume with dependable 3,000 PSI pressure, the AR XWA9G30N is a proven commercial pump built to run at 1750 RPM all day long.

High flow. Smooth operation. Built for work.
