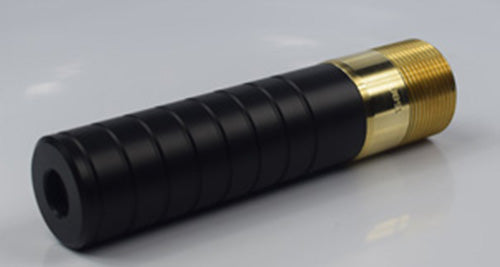

Tungsten Carbide Long Venturi Sandblast Nozzle Thermo-Plastic Jacket Brass Fine Thread
These Tungsten Carbide Long Venturi Nozzles have a standard entry with 1-1/4″ brass threads. They feature a reinforced heavy-duty protective thermoplastic jacket, deeply machined brass threads and are built for physically demanding operations. The long venturi nozzle offers a 40% increase in production over a straight bore nozzle.
- Works with any 1 1/4" NPS standard nylon, aluminum or brass nozzle holder
- Manufactured from sintered tungsten carbide for long life and hardness
- Made in The USA
- Engineered venturi increases the air/media stream for hard hitting impact and superior cleaning power
- #10 and #12 have aluminum jacket
Choose the correct size for your air compressor output in the drop-down box above.
| Part Number | Nozzle Number | Orifice Size | Required CFM @90 PSI |
| UDLB-3BA | #3 | 3/16" | 19 |
| UDLB-4BA | #4 | 1/4" | 75 |
| UDLB-5BA | #5 | 5/16" | 125 |
| UDLB-6BA | #6 | 3/8" | 175 |
| UDLB-7BA | #7 | 7/16" | 240 |
| UDLB-8BA | #8 | 1/2" | 300 |
| UDLB-10BA | #10 | 5/8" | 500 |
| UDLB-12BA | #12 | 3/4" | 700 |
