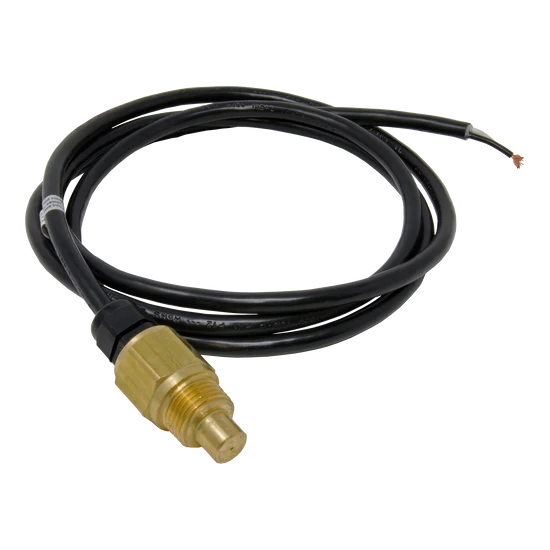

3/8" MPT High Limit Switch – 230°F with 68" Lead for Hot Water Pressure Washers

3/8" MPT High Limit Switch – 230°F with 68" Lead for Hot Water Pressure Washers

Protect your hot water pressure washer from excessive temperatures with this 230°F High Limit Switch with 68" Lead. Featuring a 3/8" Male NPT connection, this temperature-activated safety switch is designed to interrupt the burner control circuit when the preset temperature limit is reached.

The extra-long 68-inch lead provides plenty of flexibility for routing the wiring to burner controls on larger machines or installations where the control components are located farther from the heating coil.

Specifications:

• Type: High Limit Temperature Switch

• Temperature Setting: 230°F

• Connection: 3/8" Male NPT

• Lead Length: 68"

• Application: Hot Water Pressure Washer Burner Safety Control

Applications:

• Hot water pressure washers

• Oil-fired burner systems

• Commercial cleaning equipment

• Industrial pressure washing systems

• Replacement and custom-built hot water pressure washers

Features:

• Fixed 230°F high limit setting

• 3/8" Male NPT connection

• Extra-long 68" lead for flexible installation

• Temperature-activated burner safety control

• Helps protect against excessive water temperatures

• Provides an additional safeguard for the burner and heating coil

• Ideal for commercial and industrial hot water pressure washers

What it does:

The high limit switch monitors temperature within the pressure washer's heating system. If the temperature reaches approximately 230°F, the switch changes electrical state to interrupt the burner control circuit, preventing the burner from continuing to add heat.

High Limit Switch vs. Thermostat:

An adjustable thermostat regulates the pressure washer's normal operating temperature. The high limit switch is a safety device that provides an additional cutoff when the system reaches its preset temperature limit.

Why it matters:

A properly functioning high limit switch helps protect against:

• Excessive water temperatures

• Burner overheating

• Heating coil damage

• Damage to hoses, seals, and other components

• Unsafe equipment operation

The combination of a 230°F fixed temperature setting, 3/8" MPT connection, and extra-long 68" lead makes this high limit switch a convenient replacement for compatible commercial hot water pressure washer systems.

Not sure if this is the correct high limit switch for your machine? Reach out—we'll help you get the right part the first time.
