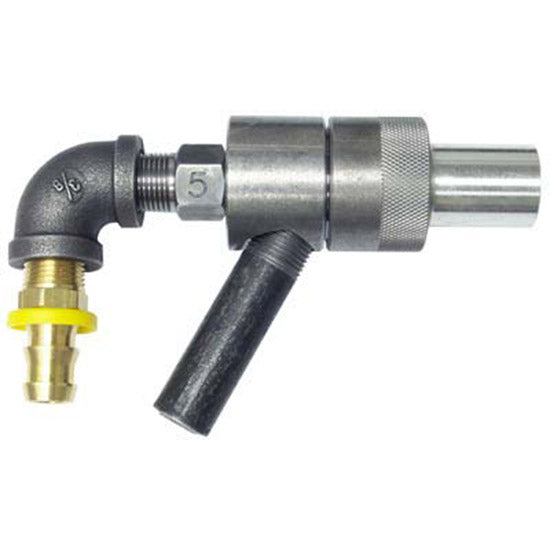

Universal Uniblast F113-024 Blast Gun Assembly – 3/8" Boron Carbide Straight Nozzle

Complete Universal Equipment Manufacturing / Uniblast Technologies F113-024 abrasive blast gun assembly equipped with a 3/8" boron carbide straight-bore nozzle and 5/32" air jet.

Designed for suction-feed abrasive blasting systems, this complete gun assembly combines compressed air with abrasive media to produce a concentrated blast stream for surface preparation, coating removal, cleaning, and industrial finishing.

Part Information:

• Manufacturer: Universal Equipment Manufacturing Company / Uniblast Technologies
• Part Number: F113-024
• Product: Complete Abrasive Blast Gun Assembly
• Nozzle Type: Straight Bore
• Nozzle Material: Boron Carbide
• Nozzle Bore: 3/8"
• Air Jet: 5/32"
• Application: Suction-Feed Abrasive Blasting Equipment

Includes:

• Complete Blast Gun Assembly
• 3/8" Boron Carbide Straight-Bore Nozzle
• 5/32" Air Jet

Features:

• Genuine Universal / Uniblast blast gun assembly
• 3/8" boron carbide straight-bore nozzle
• 5/32" air jet
• Designed for suction-feed abrasive blasting systems
• Straight-bore nozzle provides a concentrated blast pattern
• Boron carbide provides exceptional resistance to abrasive wear
• Suitable for frequent and production blasting
• Complete assembly simplifies blast-gun replacement and servicing
• Excellent for professional and industrial blast cabinets
• Helps keep older Universal / Uniblast equipment in service

Straight-Bore Nozzle

The F113-024 uses a straight-bore nozzle, producing a relatively concentrated abrasive stream.

This configuration is well suited for localized surface preparation, cleaning individual components, coating removal, and applications where the operator wants to focus the abrasive stream on a specific area.

The straight-bore configuration provides a more concentrated blast pattern, while the venturi configuration is designed to expand the abrasive/air stream for broader coverage.

Why Boron Carbide?

Boron carbide is an extremely hard, wear-resistant material and is an excellent choice for demanding abrasive blasting applications.

Its resistance to abrasive erosion makes it particularly useful for:

• Production blast cabinets
• Frequent or continuous blasting
• Aggressive abrasive media
• Industrial surface preparation
• Applications where extended nozzle service life is important

Actual nozzle life depends on abrasive type, media size, operating pressure, and blasting conditions.

How a Suction Blast Gun Works

Compressed air passing through the 5/32" air jet creates a low-pressure area inside the blast gun, drawing abrasive media through the media hose.

The abrasive combines with the compressed-air stream and exits through the 3/8" boron carbide straight-bore nozzle toward the work surface.

Correct matching of the air jet, nozzle, abrasive supply, and compressor capacity is important for proper abrasive pickup and consistent blasting performance.

Air Consumption / Compressor Requirements

CFM figures are provided as a general siphon-blast compressor-sizing reference. Actual air consumption can vary with gun configuration, nozzle condition, operating conditions, and the compressed-air system. The compressor must provide sufficient CFM at the desired operating pressure for proper abrasive pickup and blasting performance.

Applications:

• Suction-feed blast cabinets
• Industrial abrasive blasting
• Production blasting
• Localized surface preparation
• Paint and coating removal
• Rust and corrosion removal
• Cleaning fabricated and machined components
• Equipment restoration
• General industrial maintenance

Checking Nozzle Wear

Even a boron carbide nozzle will eventually wear as abrasive passes through it.

As the nozzle bore enlarges, you may notice:

• Increased compressed-air consumption
• Changes in blast pattern
• Reduced abrasive velocity
• Reduced blasting efficiency
• Increased abrasive consumption
• Difficulty maintaining operating pressure

Periodically measuring the nozzle bore helps identify excessive wear before it significantly affects blast performance.

Finding Parts for Older Universal / Uniblast Equipment

Universal Equipment Manufacturing and Uniblast Technologies blasting equipment has been used in industrial applications for many years, and components for older machines can sometimes be difficult to identify.

That's why we include the original manufacturer part number and complete nozzle/air-jet configuration whenever possible.

For this assembly, the key identification information is:

Universal / Uniblast F113-024 – 3/8" Boron Carbide Straight-Bore Nozzle with 5/32" Air Jet

Important:

This listing is for one Universal Equipment Manufacturing / Uniblast Technologies F113-024 complete blast gun assembly with 3/8" boron carbide straight-bore nozzle and 5/32" air jet.

Always verify the F113-024 part number, 3/8" nozzle bore, straight-bore nozzle design, and 5/32" air-jet size before ordering.

Completely shut off and relieve compressed-air pressure before installing, removing, or servicing any blast gun, nozzle, air jet, hose, or related blasting component. Never operate abrasive blasting equipment with damaged or improperly secured components.

Need another part for your Universal or Uniblast abrasive blasting equipment? Contact us with the original part number, nozzle size, air-jet size, or equipment model—we'll help you identify the correct part to keep your equipment working.
