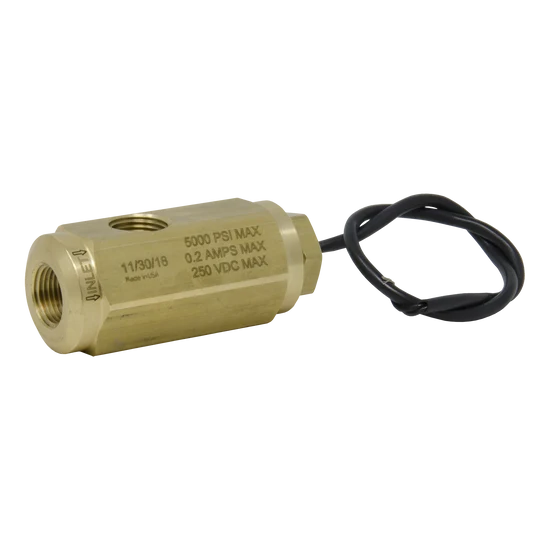

100716 Flow Switch – 12 GPM, 5000 PSI, 0.2A 250V – Mount A for Hot Water Pressure Washers

100716 Flow Switch – 12 GPM, 5000 PSI, 0.2A 250V – Mount A for Hot Water Pressure Washers

The 100716 Flow Switch is designed for high-pressure, high-flow hot water pressure washer systems requiring dependable burner control. Rated for up to 12 GPM and 5000 PSI, this heavy-duty flow switch senses water movement through the system and provides an electrical signal to control the burner circuit.

With a 0.2 amp, 250V electrical rating and Mount A configuration, this switch is an excellent replacement for compatible commercial and industrial hot water pressure washers.

Specifications:

• Part Number: 100716

• Type: Flow Switch

• Maximum Flow: 12 GPM

• Maximum Pressure: 5000 PSI

• Electrical Rating: 0.2 Amp @ 250V

• Mounting Configuration: Mount A

• Application: Hot Water Pressure Washer Burner Control

Applications:

• Hot water pressure washers

• Oil-fired burner systems

• High-flow commercial pressure washers

• Industrial cleaning equipment

• Replacement and custom-built hot water pressure washer systems

Features:

• Heavy-duty 5000 PSI pressure rating

• Handles flow rates up to 12 GPM

• Flow-activated burner control

• Automatically responds as water flow starts and stops

• Helps prevent burner operation without adequate water flow

• Designed for demanding commercial and industrial pressure washer applications

What it does:

The 100716 senses water flowing through the pressure washer system. When adequate flow is detected, the switch changes electrical state to activate the burner control circuit. When water flow stops, the switch changes state again, allowing the burner control system to shut down.

Why it matters:

A properly functioning flow switch helps prevent:

• Burner operation without adequate water flow

• Heating coil overheating

• Excessively high water temperatures

• Unnecessary burner operation

• Premature heating system damage

With its 12 GPM capacity and 5000 PSI pressure rating, the 100716 is well suited for larger commercial hot water pressure washer systems where a standard lower-flow switch may not be adequate.

Not sure if Mount A is the correct configuration for your machine? Reach out—we'll help you get the right part the first time.
