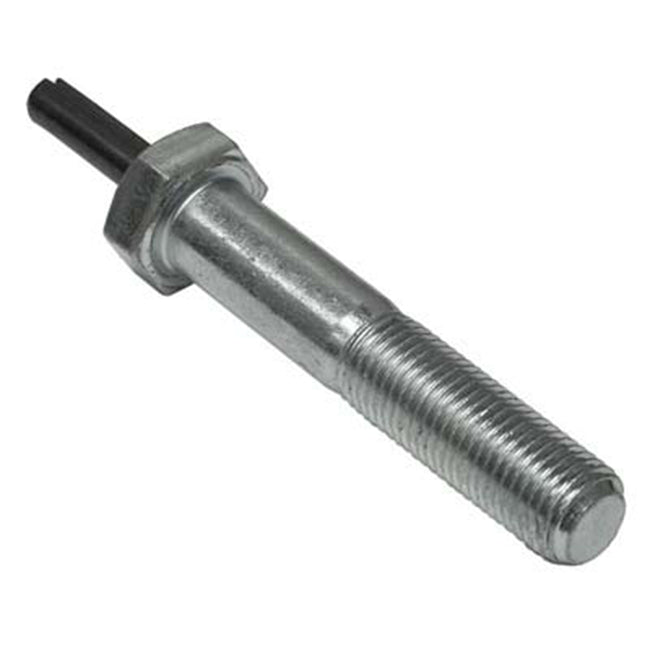

PK Lindsay 3-03C Medium Mixing Valve Bolt with Stop – Diagram #15 – Models 200E & 300E

Keep your older PK Lindsay abrasive blasting equipment in service with the 3-03C Medium Mixing Valve Bolt with Stop. This bolt is part of the adjustment mechanism used on the medium mixing valve found on PK Lindsay Models 200E and 300E.

The 3-03C is identified as Item #15 in the exploded parts diagram, making it easy to verify the correct component before ordering.

Part Information:

• Part Number: 3-03C
• Product: Medium Mixing Valve Bolt with Stop
• Diagram Item: #15
• Application: PK Lindsay Medium Mixing Valve
• Equipment Type: Abrasive Blasting Equipment

Fits PK Lindsay Models:

• Model 200E
• Model 300E

Includes:

Exploded Diagram Item #15

Refer to the exploded parts diagram below to identify the component included with this listing.

Applications:

• PK Lindsay abrasive blast pots
• Pressure sandblasting equipment
• Medium mixing valve assemblies
• Commercial abrasive blasting systems
• Industrial surface preparation equipment

Features:

• PK Lindsay 3-03C medium mixing valve bolt with stop
• Identified as #15 in the exploded parts diagram
• Fits Models 200E & 300E
• Component of the mixing valve adjustment mechanism
• Ideal for repairing or rebuilding an existing mixing valve
• Replaces a worn, bent, damaged, or missing bolt
• Helps restore proper mixing valve adjustment
• Helps keep older PK Lindsay blasting equipment in service

What It Does:

The 3-03C Bolt with Stop is part of the adjustment mechanism of the PK Lindsay medium mixing valve. It works with the spindle arm and related components to provide controlled adjustment of the mixing valve and abrasive flow.

The stop helps limit movement of the adjustment mechanism, allowing the valve to operate within its intended adjustment range.

Years of repeated adjustment, corrosion, or mechanical wear can eventually damage the bolt, threads, or stop. Replacing a worn component can help restore proper operation without replacing the complete mixing valve assembly.

Common Signs the Bolt with Stop May Need Replacement:

• Mixing valve adjustment has excessive movement
• Valve is difficult to adjust properly
• Stop is worn or damaged
• Bolt threads are damaged
• Bolt is bent, corroded, or seized
• Original bolt or stop is missing during a rebuild

Finding Parts for Older PK Lindsay Equipment

PK Lindsay blast machines may no longer be manufactured, but many 200E and 300E machines remain in service. Individual mixing valve components can be difficult to identify and locate when you're working from an older exploded parts diagram.

That's why we include the original PK Lindsay part number and exploded diagram item number whenever possible—so you can identify exactly what you need before ordering.

Important:

This listing is for the PK Lindsay 3-03C Medium Mixing Valve Bolt with Stop – Diagram Item #15 only.

Other components shown in the exploded parts diagram are sold separately unless specifically stated otherwise.

Need another part shown in the diagram? Reach out with the PK Lindsay part number or diagram item number—we'll help you find the right part to keep your machine working.
